NuTone CT650 Central Vacuum Dirt-Sensing Power Brush Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone CT650 Central Vacuum Dirt-Sensing Power Brush Parts

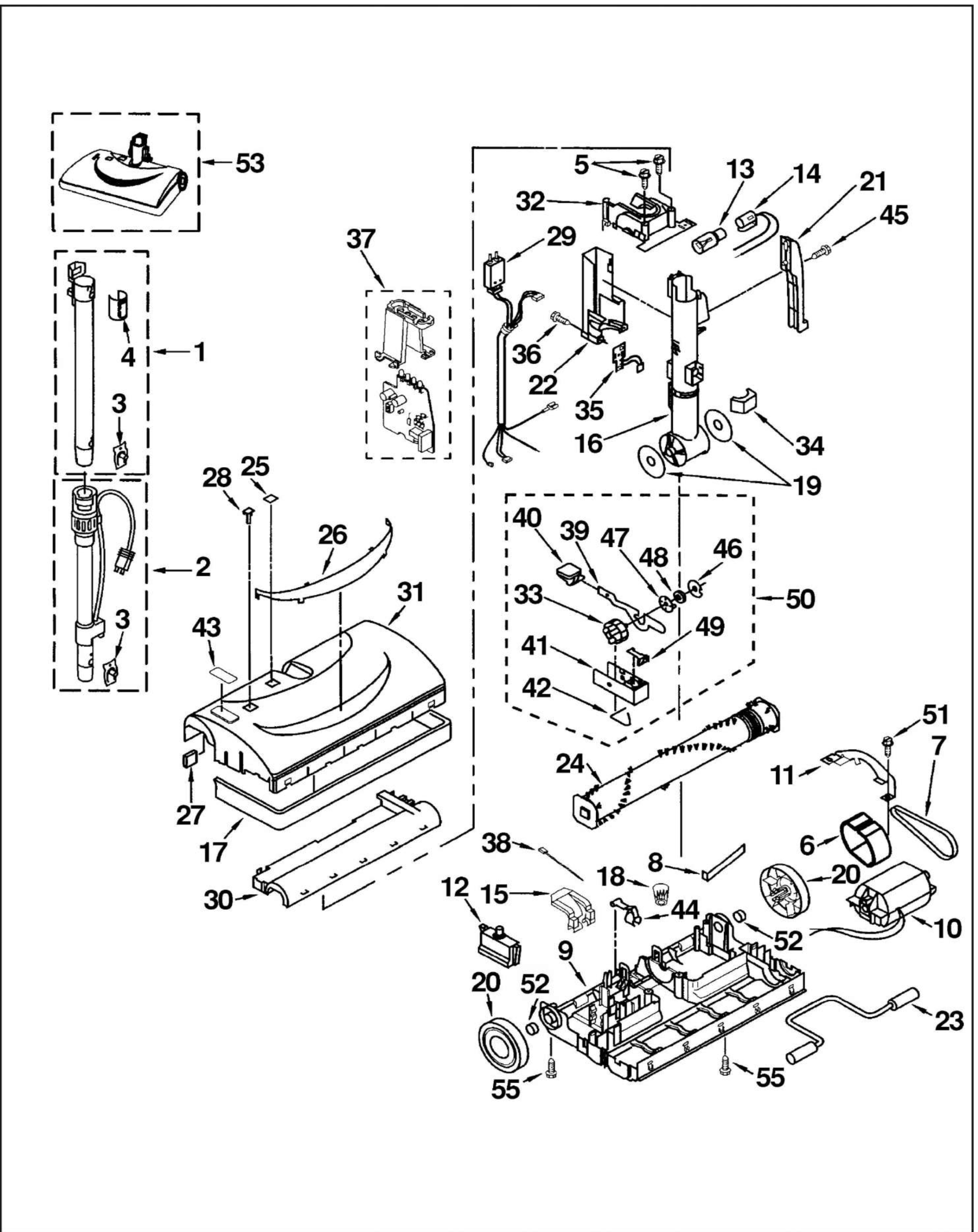

NuTone CT650 Central Vacuum Dirt-Sensing Power Brush Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
0S0719B000 FILTER
This product has been discontinued

1S88285000 UPPER WAND #C97PASHOV006 $243.00
2S0715B000 LOWER WAND $115.20
7S0518B000 DRIVE BELT, COGGED BELT, VERSION 1 $18.00
7S1012B000 DRIVE BELT, smooth belt, VERSION 2 $27.32
11S0732B000 LEAD WIRE $25.28
11S0728B000 FOOT PEDAL $5.54
12S0637B000 OVERLOAD PROTECTOR $8.98
13S9123A000 BULB $4.80
14S0722B000 FLOOR NOZZLE-LOWER $12.55
15S0636B000 HANDLE RELEASE $36.00
16S0729B000 SWIVEL $18.00
16S0673B000 WINDOW COVER to the indicator lights $1.69
16S0737B000 MOTOR GASKET $1.73
16S0624B000 MOTOR, VERSION 1 (cogged belt )
This product has been discontinued

19S0652B000 SWIVEL SEAL $5.15
20S0736B000 WHEEL-REAR $18.00
22S0733B000 COVER-PLUG HSG $3.50
23S0666B000 LIFTER
This product has been discontinued

24S1013B000 MOTOR, VERSION 2 (smooth belt)
This product has been discontinued

24S1014B000 AGITOR ASSY with wings, VERSION 2 use with cogged Belt 0518b $96.74
24S1010B000 Beater bar with square ends use with smooth belt (belt ker2050) after market $171.00
240716B000 AGITATOR ASSEMBLY WITH RED BRISTLES $71.10
25S0714B000 LAMPHOLDER $3.96
28S0674B000 BUTTON EXTENSION $2.50
29S0671B000 MOTOR BRIDGE $11.68
30S0726B000 COVER-AGITATOR
This product has been discontinued

35S0738B000 PC BOARD B UNIT $30.76
43S0718B000 WINDOW-DIRT SENSOR $2.38
50S0656B000 INDICATOR BLOCK ASSY $18.00
