NuTone AVD50N Deluxe Iron Center - Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

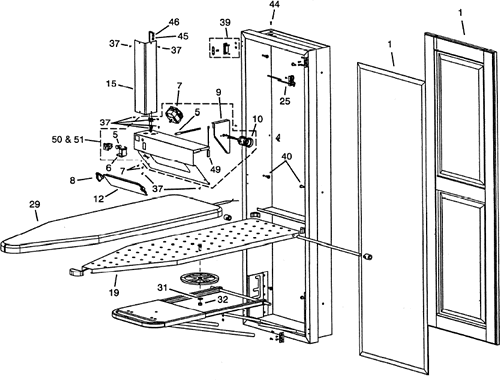

NuTone AVD50N Deluxe Iron Center -  Parts
NuTone AVD50N Deluxe Iron Center -  Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 AE46WDU Ironaway complete w/maple flat door 14.38 x 59.7/8 finish size(finish 15 x 60 5/8) $598.42
 S79110044 HEIGHT ADJUSTMENT BUSHING
This product has been discontinued

499523915 TIMER
This product has been discontinued

5S99523913 WIRING,PILOT LIGHT & POWER POI
This product has been discontinued

8S79360001 Knob, Timer - AVD50N-E
This product has been discontinued

8S99523916 KNOB-TIMER IRON CENTER
This product has been discontinued

12S99523940 LENS-WORK LIGHT $6.90
12S79110065 Light Lens (Version E) $4.18
15S99525226 WIRE CHANNEL 14" Long
This product has been discontinued

1999523928 IRONING BOARDW/CORNERS & NOSE
This product has been discontinued

19S77001043 Board - AVD50N-E
This product has been discontinued

29Iapad Cover replacement board cover for 42" (fits 12" w x 42 Long board) $49.75
31S79110035 Slide Bushing $0.70
39S77000494 Hinge long Hinge $17.84
39S99523977 PARTS BAG W/ 3-SHORT HINGES $8.74
3999525229 LONG HINGE KIT (for mirror door) $32.46
4999524036 JUMPER WIRE
This product has been discontinued

49S77000585 Control Panel Assembly (E-version 2004)
This product has been discontinued

50S99524041 CONTROL PANEL ELECTRIC, Plug,timer,knob,pilot,lens
This product has been discontinued

52S99525295 SPACER (1) (2 Required) $23.66
 S79110059 Rotational Bearing (version E)
This product has been discontinued

 S79270038 Safty Switch for (version E)
This product has been discontinued

 S79390133 WIRE COVER for (version E)
This product has been discontinued

 PLUG PLUG RECEPTICAL FOR THE CONTROL PANEL
This product has been discontinued
