NuTone 9965F Deluxe Heat-A-Ventlite Parts
Fan Replacement PDF

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9965F Deluxe Heat-A-Ventlite Parts

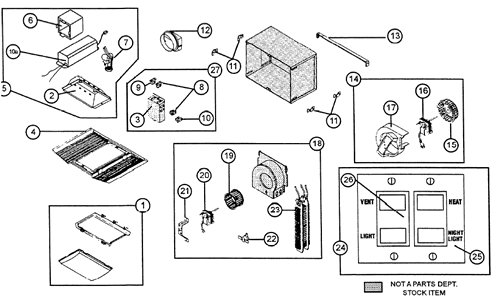

NuTone 9965F Deluxe Heat-A-Ventlite Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
not shown S97017648 Heat ASSEMBLY - Complete for models metal housing version may not fit into after 2005 existing housing (rough14x9.75x7.75 grille 16x107/8)n#2 $120.32
1 K4798000 Bezzel Only
This product has been discontinued
1 S10941174 BEZEL & LENS ASSEMBLY lens obsoleted(no grille see 89339 grille)
This product has been discontinued
2 S100173000 REFLECTOR $69.56
4 S89339000 GRILLE Only- 16" X 11" X 1 1/4"(does not come with lens/bezel see 10941174) $38.54
5 S89373000 REFLECTOR
This product has been discontinued
8 S66204000 PLUG-RECEPTACLE (Black) $27.26
9 57976000 RECEPTACLE $18.00
10 S56721000 PLUG RECEPTACLE (White)
This product has been discontinued
11 S57117000 HANGER CLIP $1.58
13 S85585000 HANGER ROD $4.37
12 S101183000 DUCT ADAPTER $27.26
14 86693000 VENT MOTOR ASSY - Motor/Blade fits Plastic Housing-obsoleted, 2005 (includes 15/16) $72.82
14 S97017646 VENT ASSEMBLY COMPLETE(new 2010 metal flat bracket) $91.18
15 S82403000 BLOWER WHEEL - White Plastic, 5"x 1 1/4" $27.26
16 S89321000 MOTOR - (VENT) Discontinued, please use part number 86693 as an alternative.
This product has been discontinued
16 S89850000 MOTOR - VENT CCW 1 7/8 SHAFT version#1 $84.60
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
18 S89306000 MOTOR - B UNIT ASSEMBLY (HEAT) call for available parts
This product has been discontinued
19 S66583000 BLOWER WHEEL - (Heat), CW, 3 3/4" x 2") version#1 $24.30
21 S23255000 MOTOR MOUNT $1.58
22 S1179A000 THERMO PROTECTOR $27.26
23 S89312000 HEATING ELEMENT $84.60
24 S85918000 COMPLETE SWITCH W/ Plate 4 function $43.63
25 S85920000 SWITCH PLATE WALL $27.26
26 S85921000 2 SWITCH BRIGHT WHITE (need 2) $24.95
27 S99271311 18 WATT FLUORESCENT BULB-2PIN $26.55
