NuTone 9965-R02 Heater Fan Light

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9965-R02 Heater Fan Light

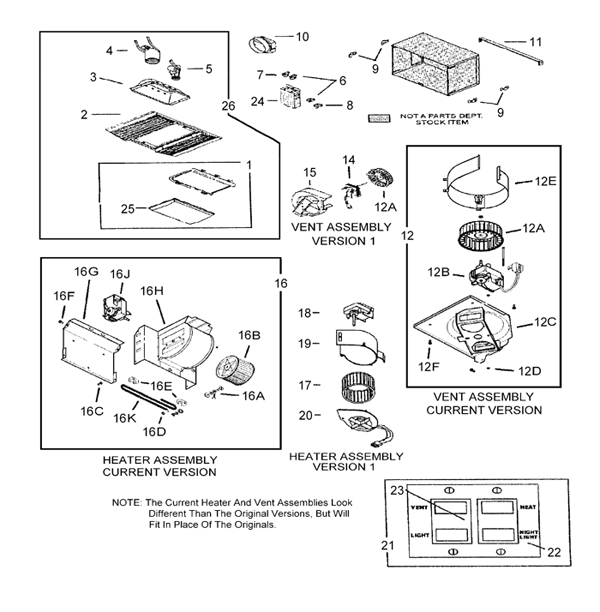

NuTone 9965-R02 Heater Fan Light breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S10941174 BEZEL & LENS ASSEMBLY(lens obsoleted) (Grille Sold Separately)
This product has been discontinued
2 S89339000 GRILLE Only- 16" X 11" X 1 1/4" (Lens/Bezel Sold Separately) $38.54
2 S89338000 GRILLE, LENS & REFLECTOR, Sockets - (16" X 11" X 1 1/4")
This product has been discontinued
1 K4798000 Bezzel Only
This product has been discontinued
3 S100173000 REFLECTOR $69.56
4 S99770112 LAMP SOCKET - 100W $27.26
5 S35759000 LAMP SOCKET-7W (night light) $27.26
6 S99270982 PLUG-RECEPTACLE (White) $27.26
7 S99270981 RECEPTACLE (Black) $27.26
8 S99270489 PLUG RECEPTACLE (Red) $27.26
10 S101183000 DUCT ADAPTER $27.26
11 S85585000 HANGER ROD $4.37
12 S97017646 VENT ASSEMBLY COMPLETE version#2 $91.18
12 S99080592 Motor Vent ccw version #2 (Flat Metal Bracket) $67.68
13 S82403000 BLOWER WHEEL - White Plastic, 5"x 1 1/4" $27.26
14 S89850000 MOTOR - VENT version#1 CCW shaft 1 7/8, 7/32d $84.60
14 86693000 VENT MOTOR ASSY - Motor/Blade fits Plastic Housing-obsoleted, prior to 2005 (includes 12/14 $95.98
16 S97017648 HEATER ASSEMBLY COMPLETE (Metal Version #2) $120.32
16A S97011810 Thermo Fuse (Metal Current production New 2010 ) $27.26
16K S98004514 Element (Metal Current production New 2010 ) $27.26
16B S99020290 Blower Wheel (Metal Current production New 2010 ) $27.26
16J S99080593 Heat Motor Modified (Metal Current production New 2010 ) $77.94
  88568KIT Motor, Blade, Element, Screws (must have plastic housing)version #1 $199.81
17 S66583000 Blower Wheel CW, 3 3/4" x 2" 1/4" Bore-alternative replacement $24.30
18 S88569000 HEAT MOTOR ONLY CCW - for Version #1 fits into the plastic housing) $98.70
19 S88568000 Heat Assy(17,18,19,20 for version #1 with plastic housing )
This product has been discontinued
20 S0969B000 HEATER ELEMENT - (Includes Thermal Protector) version#1w/ 110plug $88.36
21 S85918000 Complete Switch Plate and 2 Banks of switches (white Plastic NO LETTERING) $43.63
22 S85920000 SWITCH PLATE WALL-obsoletd
This product has been discontinued
23 S85921000 2 SWITCH BRIGHT WHITE (need 2 sold each) $24.95
