NuTone 9965 Heat-A-Lite Bathroom Heater/Light Parts
Fan Replacement PDF

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9965 Heat-A-Lite Bathroom Heater/Light Parts

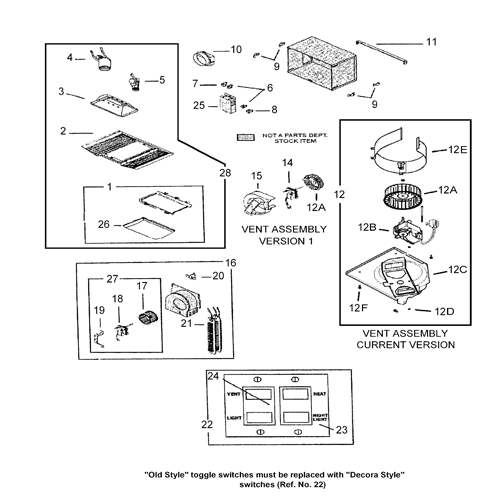

NuTone 9965 Heat-A-Lite Bathroom Heater/Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S10941174 BEZEL & LENS (lens obsoleted) (Grille Sold Separately)
This product has been discontinued

2 S89339000 GRILLE Only- 16" X 11" X 1 1/4" (Lens/Bezel Sold Separately) $38.54
2 S89338000 GRILLE, LENS & REFLECTOR ASSEMBLY - (16" X 11" X 1 1/4")
This product has been discontinued

3 S100173000 REFLECTOR $69.56
  S99770112 LAMP SOCKET - 100W $27.26
5 S35759000 LAMP SOCKET-7W (night light) $27.26
6 S66204000 PLUG-RECEPTACLE (Black) $27.26
7 57976000 RECEPTACLE $18.00
8 S56721000 PLUG RECEPTACLE (White)
This product has been discontinued

10 S101183000 DUCT ADAPTER $27.26
11 S85585000 HANGER ROD $4.37
12 S97017646 VENT ASSEMBLY - Complete for models after 2005 with metal flat bracket only $91.18
12A S82403000 BLOWER WHEEL - White Plastic, 5"x 1 1/4" $27.26
14 S89850000 MOTOR CCW 1 7/8 SHAFT - VENT for Version#1 $84.60
17 S66583000 BLOWER WHEEL - (Heat), CW, 3 3/4" x 2") for heat Version#1 $24.30
19 S86081000 MOTOR MOUNT $27.26
20 S1179A000 THERMO PROTECTOR $27.26
21 S89312000 HEATING ELEMENT $84.60
22 S85918000 COMPLETE SWITCH W/ Plate 4 function $43.63
24 S85921000 2 SWITCH BRIGHT WHITE (need 2) $24.95
  S99271426 Night Light $18.00
27 89314000 HEAT ASSY CCW 2 3/4SHFT - ModifiedMotor, Blade, bracket #17,18,19 for use with models prior to 2005 $107.76
