NuTone 9905 Nutone Heat-A-Vent Combination
70cfm Exhaust and 1500 Watt Heat

Listed below are the parts available for this model.

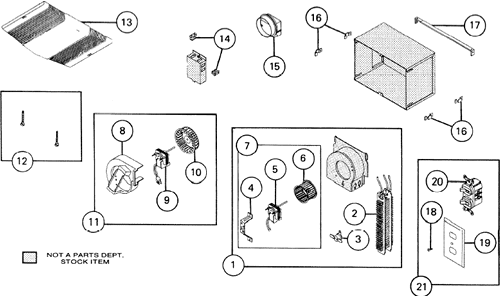

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."
NuTone 9905 Nutone Heat-A-Vent Combination  70cfm Exhaust and 1500 Watt Heat
NuTone 9905 Nutone Heat-A-Vent Combination  70cfm Exhaust and 1500 Watt Heat breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
not shown9905 Complete New 9905, may not fit into existing housing $163.23
289312000 HEATING ELEMENT $30.98
31179A000 THERMO KIT $10.30
423255000 MOTOR MOUNT $1.58
666583000 BLOWER WHEEL - (Heat), CW, 3 3/4" x 2" $16.90
789314000 HEAT ASSY - Modified #4,5,6 for use with models prior to 2005 $55.62
82908A000 SCROLL & WASHER KIT $7.96
989850000 MOTOR - VENT $34.38
1082403000 BLOWER WHEEL - White Plastic, 5"x 1 1/4" $4.01
11S97017646 VENT ASSEMBLY COMPLETE $33.66
1186693000 VENT MOTOR ASSY - Motor/Blade/Plastic Housing, prior to 2005 (includes 12A,14,15) $46.35
1289323015 SCREW #8x1.25 PH PAN HD TYPE A $0.54
1389322000 GRILLE - (16" x 10 7/8") $28.55
1456721000 PLUG RECEPTACLE (White) $4.00
1457976000 RECEPTACLE $1.35
15101183000 DUCT ADAPTER ASSEMBLY $3.94
1657117000 HANGER CLIP $1.58
1785585000 HANGER ROD ASSY $4.37
1989327000 WALL PLATE - BRIGHT WHITE $2.92
2085921000 2 SWITCH BRIGHT WHITE (need 2) $14.35
