NuTone 9427P-R01 Ventilation fan/Bulb Heater Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9427P-R01 Ventilation fan/Bulb Heater Parts

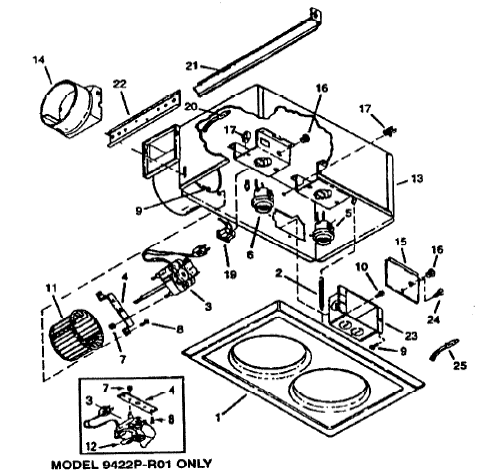

NuTone 9427P-R01 Ventilation fan/Bulb Heater Parts breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
 9427P Brand New Production (will not fit into existing housing) $56.84
 PAR38 175WATT HEAT BULB $17.89
**S99270668 CRIMP CONNECTOR $0.72
1S97010320 GRILLE ASSRMBLY COIL SPRING(not Vspring 89260) $25.82
2S06170-00 GRILLE SPRING $0.64
3S97010254 MOTOR - Shaft size 3", CW, 2 Prong 120v Plug $44.60
4S98007352 MOTOR BRACKET $1.80
5S99770033 BULB HOLDER $4.54
6S99271356 LAMP SOCKET - Ceramic $6.12
7S99260423 NUT, Hex #8-32 (2 required sold each) to mount motor to bracket $0.80
8S99160360 SCREW (2 required sold each) to mount bracket to housing $0.72
903100-32 SCREW $0.61
1003100-15 GROUND SCREW $0.61
11S97010255 BLOWER WHEEL - 3 1/2" x 2 1/2 ", CW, Black Plastic $10.16
14S97009595 DAMPER/DUCT CONNECTOR $9.28
1699400026 BUSHING $0.72
17S04116-00 WIRE CLIP $0.68
19S99271323 RECEPTACLE $1.44
20S99270832 THERMOSTAT (FAN) $9.46
21S98003036 MOUNTING BRACKET $1.06
22S98007763 BrackeT-CHANNEL $1.94
23S25064-00 WIRING BOX $6.95
2403100-28 SCREW $0.72
25S79270237 THERMOSTAT (Lamps) $3.72
