NuTone 9425 Bulb Heater Parts

Listed below are the parts available for this model.

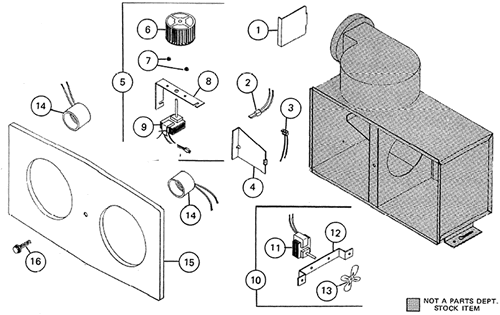

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9425 Bulb Heater Parts
NuTone 9425 Bulb Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  164 Brand New Production (will not fit into existing housing) $81.54
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
  PAR40 250 Watt Inferred Heat Bulb $18.90
3 S99270982 RECEPTACLE (BLACK) $18.00
5 S82229000 VENT ASSEMBLYReplacement for discontinued 68293. $135.36
7 S69289000 GROMMET KIT $27.26
8 S64622000 MOTOR MTG BRACKET $27.26
10 23298000 COOLING ASSEMBLY (motor modified cw/blade) must use old bracket $63.57
13 23299000 FAN BLADE 4 blade metal $10.48
16 21988001 GRILLE SCREW - Aluminum 1/4-20X1 3/16 $2.16
  23295000 Thermo Protector (1 left) $13.06
  57974000 Lamp Socket $12.51
