NuTone 9417DN-R01 Ventilation fan/Bulb Heater Parts

Listed below are the parts available for this model.

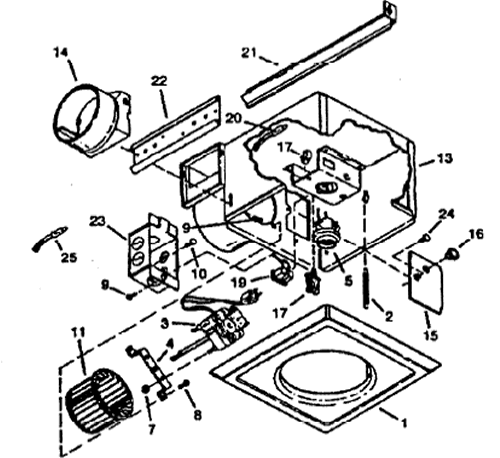

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9417DN-R01 Ventilation fan/Bulb Heater Parts
NuTone 9417DN-R01 Ventilation fan/Bulb Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  162 Brand New Production (will not fit into existing housing) $67.75
  PAR40 250 WATT HEAT BULB $21.70
1 S97010319 GRILLE W/springs - (8 1/2" x 8 1/2" x 1/2") coil spring $28.20
2 S06170-00 GRILLE SPRING $27.26
3 S97010254 MOTOR - Shaft size 3", CW, 2 Prong 120v Plug (3 1/16 SHAFT) $59.22
4 S98007352 MOTOR BRACKET $27.26
5 S99770033 BULB HOLDER $27.26
7 S99260423 NUT, Hex #8-32 (2 required sold each) to mount to housing $18.00
8 S99160360 SCREW ( 2 required sold each) mounts motor to bracket $27.26
9 03100-32 SCREW $0.61
10 03100-15 GROUND SCREW $0.61
11 S97010255 BLOWER WHEEL - 3 1/2" x 2 1/2 ", CW, Black Plastic $27.26
13 S97009476 HOUSING $67.68
14 S97009595 DAMPER/DUCT CONNECTOR $27.26
16 S99400026 BUSHING
This product has been discontinued

17 S04116-00 WIRE CLIP
This product has been discontinued

19 S99271323 RECEPTACLE $27.26
20 S99270832 THERMOSTAT (FAN) $27.26
21 S98003036 MOUNTING BRACKET $27.26
22 S98007763 BRKT-CHANNEL $3.78
23 S25064-00 WIRING BOX
This product has been discontinued

24 03100-28 SCREW $0.72
25 S79270237 THERMOSTAT (heat bulbs) $27.26
