NuTone 9417DN One-Bulb Heat-A-Vent® (IC model)
250 Watt Radiant Heat from R-40 Infrared Heat Lamp
70 CFM Ventilation Fan

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."
NuTone 9417DN One-Bulb Heat-A-Vent® (IC model)  250 Watt Radiant Heat from R-40 Infrared Heat Lamp 70 CFM Ventilation Fan

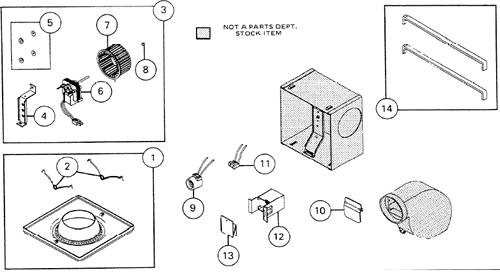

NuTone 9417DN One-Bulb Heat-A-Vent® (IC model)  250 Watt Radiant Heat from R-40 Infrared Heat Lamp 70 CFM Ventilation Fan breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
 9417DN Brand New Production (will not fit into existing housing) $39.75
 PAR38 175WATT HEAT BULB $17.89
189199000 GRILLE ASSEMBLY - (10 1/4" X 10 1/4" X 1") $8.98
389222000 EXHAUST UNIT ASSEMBLY $62.80
489223000 BRACKET MOTOR MOUNTING $4.09
569289000 GROMMET KIT $4.48
689224000 MOTOR - Shaft Size, 7/32" x 2 3/16" CCW, 2 Prong Plug $30.71
785600000 BLOWER WHEEL - w/Clip for use w/ 53709 Motor only, 4" x 2 1/4", CCW, Black Plastic $3.01
865462000 COMPRESSION CLIP $1.33
1011390000 LOUVER $6.62
1121032000 RECEPTACLE $7.36
1485585000 HANGER ROD $4.37
