NuTone 9297T-R01 Surface Mount Radiant Heater Parts

Listed below are the parts available for this model.

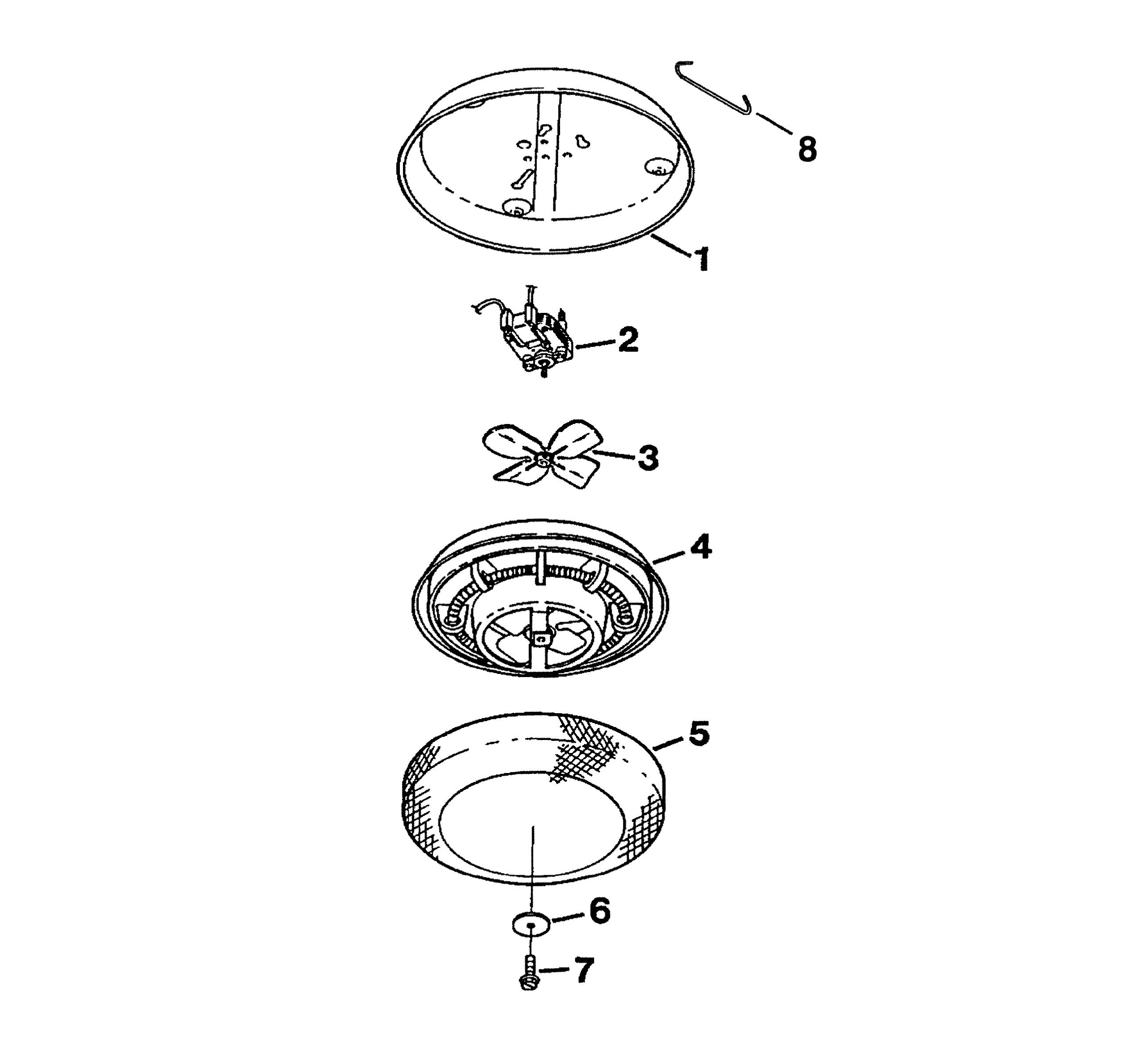

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9297T-R01 Surface Mount Radiant Heater Parts

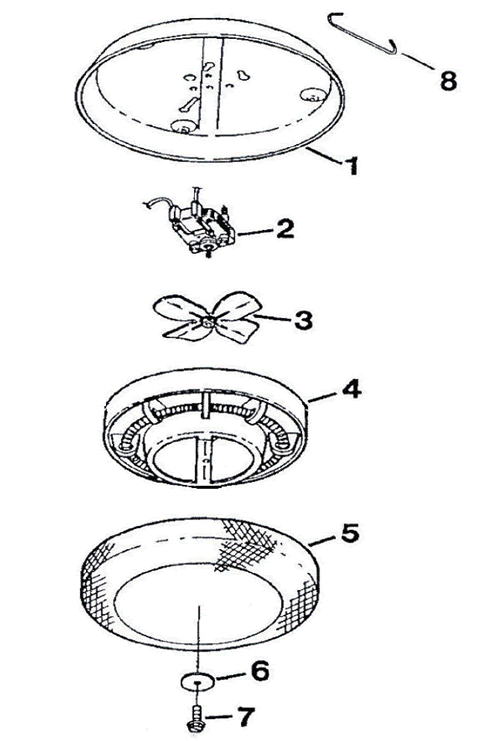

NuTone 9297T-R01 Surface Mount Radiant Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
notshown 157 COMPLETE Surface Mount Heater 1250Watt New 10 7/8 round $119.20
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
2 02200-18 MOTOR - Shaft size 1/2", CCW, 120v $52.74
3 S06116-00 FAN BLADE $27.26
5 S25045-00 GRILLE (10" ROUND) $51.70
4 S75075-00 Heating coil w/thermo protector/alum. pan w/ ceramic hooks
This product has been discontinued

6 S99090749 NAMEPLATE $2.42
7 S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
8 S06317-00 HOOK $27.26
