NuTone 9294 Surface Mount Radiant Heater Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9294 Surface Mount Radiant Heater Parts

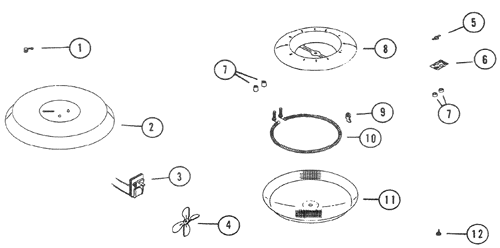

NuTone 9294 Surface Mount Radiant Heater Parts breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
not shown157 New Current Production 157 10 7/8 round $84.77
3S20693000 MOTOR - Shaft size 1/2", CCW, 120v $52.74
420727000 FAN BLADE $7.96
7S69314000 INSULATOR BUSHING SET $5.40
922399000 ELEMENT SUPPORT $0.54
1023120000 ELEMENT HEATING 1250-WATTS $19.24
1252855015 SCREW 10X1/2 PH PAN HD 25 $0.81
