NuTone 9093FWH Fluorescent Heat-A-Ventlite Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9093FWH Fluorescent Heat-A-Ventlite Parts

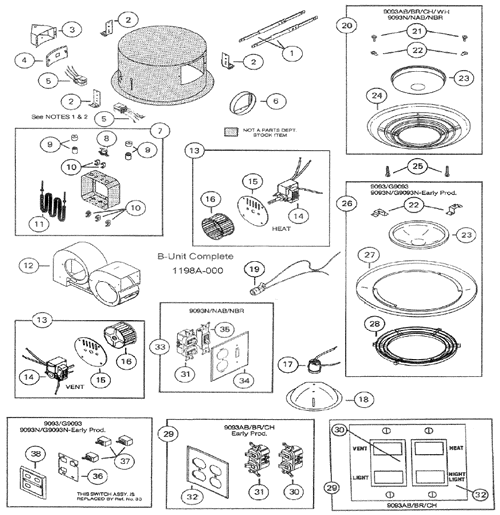

NuTone 9093FWH Fluorescent Heat-A-Ventlite Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  FV-0511VHL1 Brand New White Grille 18.25x13.25 Heat/Fan/Light/NLight $403.99
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
  0811B000 FLOURCENT LAMP (9093F) #CF26DT/827 $75.19
3 35962000 OUTLET BOX $3.19
4 S35963000 OUTLET BOX COVER
This product has been discontinued
6 S11390000 DUCT CONNECTOR
This product has been discontinued
7 S27544000 Heat Box Assembly
This product has been discontinued
8 S99271494 THERMAL PROTECTOR $27.26
9 S69314000 INSULATOR BUSHING SET
This product has been discontinued
10 S27546000 ELEMENT SUPPORT
This product has been discontinued
11 S58120000 HEATING ELEMENT
This product has been discontinued
13 S69353000 Vent Assy Modified(Vent Motor, blade, bracket) $157.92
13 S69355000 HEAT ASSY Modified- HEAT MOTOR, BLADE, BRACKET $157.92
14 57769000 MOTOR Modified Alternative - (Heat) #J38-075-7072, CCW $111.86
14 58000000 Motor Modified (Vent ccw)- need special tool to install $118.80
15 S57766000 MOTOR MOUNT PLATE
This product has been discontinued
16 S66142000 BLOWER WHEEL - METAL, 3 3/4" X 2 7/8" $33.84
16 S66583000 BLOWER WHEEL - (HEAT), CW, 3 3/4" x 2" $24.30
18 89099206 REFLECTOR $7.78
22 56706000 LENS MOUNTING CLIP (2 NEEDED) $0.76
23 S27561000 LENS GLASS - 8" X 2" ROUND
This product has been discontinued
24 89096000 BALLAST ASSY
This product has been discontinued
26 S36271000 GRILLE & LENS WHITE METAL ROUND 15 3/8 ASSEMBLY
This product has been discontinued
26 S0469A000 GRILLE METAL ROUND , WHITE (DOES NOT INCLUDE LENS-27561SOLD SEP)
This product has been discontinued
26 S101284000 SCREW 10X1 1/4 PH PAN HD A $27.26
29 S85918000 COMPLETE SWITCH W/ PLATE 4 FUNCTION $43.63
30 S85921000 2 SWITCH BRIGHT WHITE (NEED 2- NO PLATE) $24.95
29 S85920000 SWITCH PLATE WALL (NO SWITCHES )
This product has been discontinued
