NuTone 8870 Utility Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 8870 Utility Fan Parts

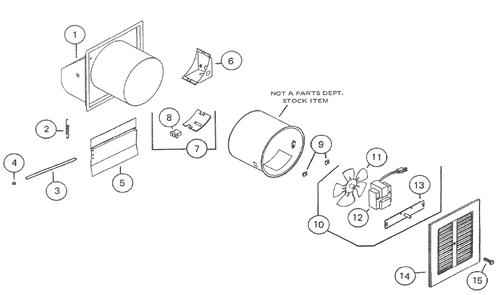

NuTone 8870 Utility Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
8 S99270982 RECEPTACLE (BLACK) $18.00
9 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
10 S1315A000 Motor (210 cfm/Blade-5 blade 6"/Bracket 6 3/4 $143.82
11 S99020125 Fan Blade - 5 1/4 (for use s99080199 motor) $27.26
12 S1200A000 Motor (210cfm and blade 6" plastic) $109.04
12 S99080199 MOTOR W Plug (70 cfm fits on bracket that is 5 1/4) $49.82
13 S15589000 MOTOR BRACKET 6 3/4 long (For a 5 1/4 in. bracket use S1200A000 motor) $46.06
13 S33194000 Fan Blade-plastic to work on 33193 motor or S1200A $27.26
14 S13178018 Grille Metal White - (10 1/2" X 10 1/2" X 1/2" W/ Center Hole) $57.34
14 S30430000 GRILLE - Plastic (9-1/2" X 8-3/4") $27.26
15 S21988001 GRILLE SCREW - Aluminum 1/4-20X1 3/16 $2.16
15 S66716000 GRILLE SCREW - Plastic 1/4-20X1 $27.26
