NuTone 8833 Deluxe Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 8833 Deluxe Exhaust Fan Parts

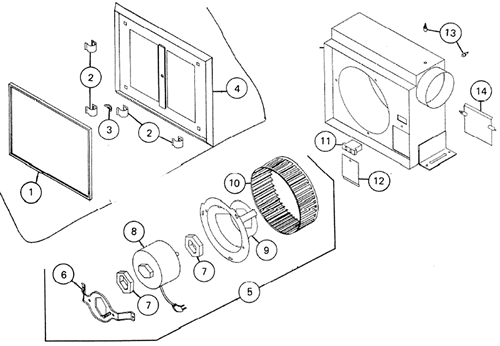

NuTone 8833 Deluxe Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
11340A000 GRILLE PANEL ASSY (8 9/16 x 10 7/16)
41176A000 Motor Clamp $18.86
4S13173000 Grille Nut (Chrome) $5.51
4S13178018 GRILLE - ALUMINUM (10 1/2" X 8 1/2" X 1/2" W/ CENTER HOLE) $29.72
5S84757000 B-UNIT ASSY(includes 10,9,8,7)
7S19360000 MOTOR MOUNT HEX (2 needed) $5.83
8S23405SER MOTOR - #JA2C028-1, CCW, Shaft Size 3/4" (must use old motor brackets2 & 6) $99.14
10SNT5901A000 BLOWER WHEEL ASSEMBLY - White Plastic, CW, 6-1/8" x 2" $16.58
11SNT10034000 RECEPTACLE (BLACK) $4.00
12S23383000 OUTLET BOX COVER $3.10
13S27538000 BUMPER $2.09
15S63007000 NUT-PUSH 1/4 $0.86
