NuTone 8831 Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 8831 Exhaust Fan Parts

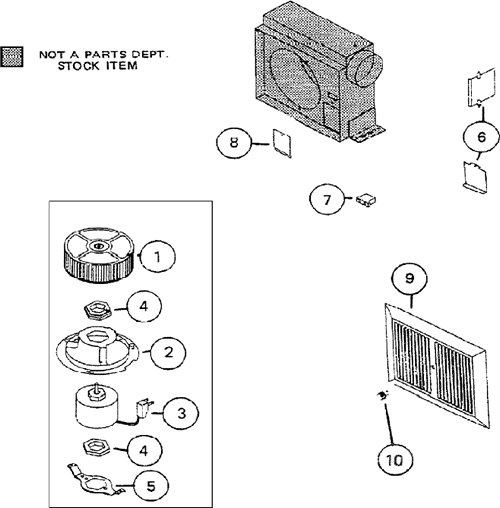

NuTone 8831 Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1S16296000 Metal blower wheel
This product has been discontinued
31314A000 Blower Assembly - Motor, Blower Wheel, & Mounting Plate
This product has been discontinued
3S23405SER Motor - #JA2C028-1, CCW, Shaft Size 3/4" (must use old motor brackets 2 & 56) $178.20
4S19360000 Motor Mount Hex (2 Needed) $18.00
7S99270982 Receptacle (Black) $18.00
9S13178018 Grille Metal White - (10 1/2" X 10 1/2" X 1/2" W/ Center Hole) $58.50
10S13173000 Grille Nut $18.00
