NuTone 8814R Decorative Bath Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 8814R Decorative Bath Exhaust Fan Parts

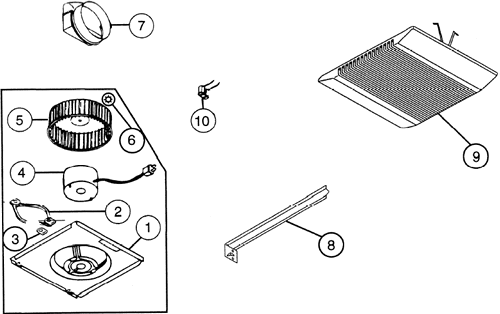

NuTone 8814R Decorative Bath Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
2 S32787000 Motor Insul Mount Jas# 8114138 $27.26
3 32788000 Ground Clip
This product has been discontinued
4 S0434A000 Motor Only - Obsolete 86693 Can Use S97017707
This product has been discontinued
4 S89615000 Motor Modified Only ccw (1" d shaft to work w/5901a000) $152.28
5 S10060300 Blower Wheel for the splined motor Cw, 6-1/8" X 2" $19.83
5 SNT5901A000 Blower Wheel - White Plastic, CCW, 6-1/8" X 2" $27.26
6 S63007000 Nut-Push 1/4 $0.86
7 S101183000 Duct Adapter $27.26
8 S44388000 Hanger Bar $33.84
9 S44208000 Grille & Spring Assy - (11 1/2" X 10 1/4" X 1") spring gap at 9
This product has been discontinued
10 S99270982 Receptacle (Black) $18.00
11 S97017707 Power Unit Assembly - Motor, Blade & Bracket Repaced 86693 $153.22
12 S0448A000 Spring Set - 2
This product has been discontinued
  FG701 Universal Grille replacement 13.25 X 13.25 w spring gap at 7 & 10 $26.45
