NuTone 8814 Deluxe Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 8814 Deluxe Exhaust Fan Parts

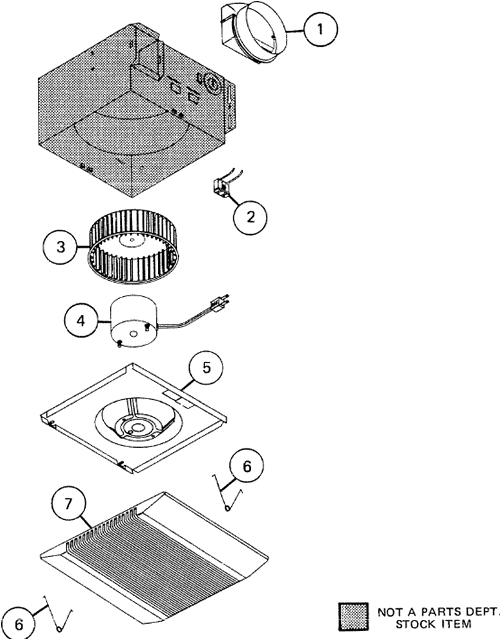

NuTone 8814 Deluxe Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S101183000 Duct Adapter Assembly $27.26
2 S99270982 Receptacle (Black) $18.00
3 SNT5901A000 Blower Wheel - White Plastic, CCW, 6-1/8" X 2" $27.26
3 S10060300 Blower Wheel for the splined motor Cw, 6-1/8" X 2" $19.83
4 S0434A000 Motor Only replaced 86933(obsoleted)
This product has been discontinued

4 S89615000 Motor Modified Only ccw (1" d shaft to work w/5901a000) $152.28
4 S97017706 Motor Blade,Bracket Will Replace 86933-Motor/Blade/Flat Bracket $141.00
7 S44208000 Grille Plastic White & Spring Assy - (11 1/2" X 10 1/4" X 1") 9" spring gape
This product has been discontinued

8 S63007000 Nut-Push 1/4 $0.86
9 S32787000 Motor Insul Mount Jas# 8114138 $27.26
  FG701 Universal Grille replacement 13.25 X 13.25 w spring gap at 7 & 10 $24.10
