NuTone 8673RP Deluxe Fan-Light Parts

Listed below are the parts available for this model.

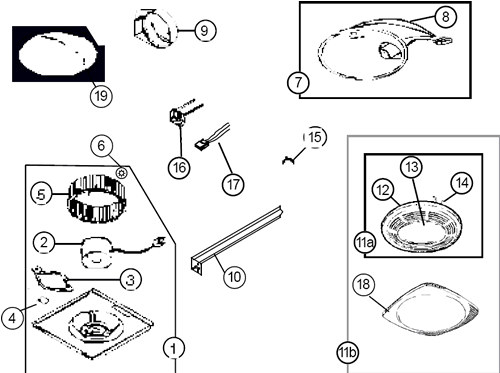

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 8673RP Deluxe Fan-Light Parts
NuTone 8673RP Deluxe Fan-Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  750 New Current production (rough 9x9 grille 15"round fan light 100cfm) $217.29
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S97017705 Power Unit Assembly(May Need To Use Old Bracket) $144.76
3 S32787000 Motor Insul Mount Jas# 8114138 $27.26
4 S32788000 Ground Clip $0.56
7 SNT85974000 Reflector w/ sockets $42.30
8 S85950000 Reflector, Lamp Socket Assembly (Bowl That Holds The Socket) $27.26
9 S101183000 Duct Adapter $27.26
10 S44388000 Hanger Bar $33.84
11 S0462B000 Grille, Lens & Bezel Assy - (15 1/4"X15 1/4"X2") Nutone Version obsoleted
This product has been discontinued
12 S97017702 Glass Grille & Lens Assembly (Newer Than 2008) Broan Version $101.52
13 S61753000 Lens - Thin Glass 9 1/2" Round X 3/4" ( Not Like The Old Glass) $56.40
14 SNT0444A000 Spring Set
This product has been discontinued
16 S99270982 Receptacle - Black $18.00
17 S99270981 Receptacle - White $27.26
18 S85938000 Bezel
This product has been discontinued
  S99271426 Night Light $18.00
