NuTone 8663RMAB Deluxe Fan-Light Parts

Listed below are the parts available for this model.

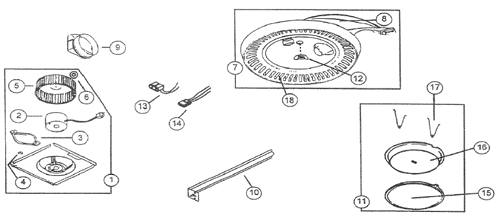

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 8663RMAB Deluxe Fan-Light Parts
NuTone 8663RMAB Deluxe Fan-Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 750 Brand new white grille 15" round (will not fit into same housing) $217.29
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1S97017705 Motor-splined Blade Bracket ASSEMBLY(may need to use old bracket) $163.80
3S32787000 Motor Insul Mount Jas# 8114138 $18.00
2S89615000 Motor Modified Only ccw (1" d shaft to work w/5901a000) $171.00
4S32788000 Ground Clip
This product has been discontinued
6S63007000 Nut-Push 1/4 $0.86
8S85950000 Lamp Socket $17.10
5S10060300 Blower Wheel for the splined motor Cw, 6-1/8" X 2" $19.83
5SNT5901A000 Blower Wheel - White Plastic, CCW, 6-1/8" X 2" $21.60
9S101183000 Duct Adapter $21.60
10S44388000 Hanger Bar $18.00
13S99270982 Receptacle (Black) $18.00
 S99271426 Night Light $18.00
