NuTone 8663RFT Deluxe Fluorescent Fan-Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 8663RFT Deluxe Fluorescent Fan-Light Parts

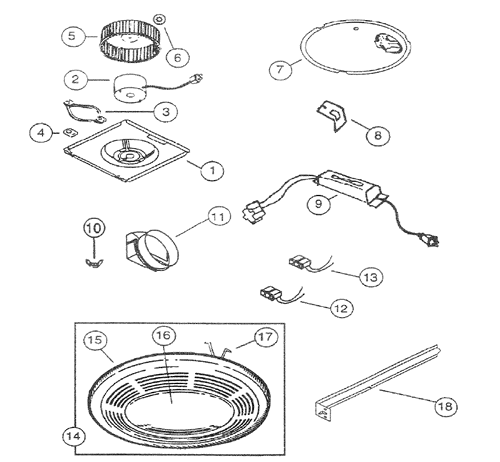

NuTone 8663RFT Deluxe Fluorescent Fan-Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
2 S89615000 Motor Modified Only ccw (1" d shaft to work w/5901a000) $152.28
1 S97017705 Power Unit Assembly (May Need To Use Old Bracket) $144.76
8 S85936000 Lampholder Bracket $0.54
9 S97016879 Ballast & Lampholder $36.02
5 SNT5901A000 Blower Wheel - White Plastic, CCW, 6-1/8" X 2" $27.26
5 S10060300 Blower Wheel for the splined motor Cw, 6-1/8" X 2" $19.83
11 S101183000 Duct Adapter $27.26
12 S99270981 Receptacle - White $27.26
13 S99270982 Receptacle - Black $18.00
15 S97017702 Grille & Lens 15" Round White $101.52
10 S99260575 Acorn Nut $27.26
17 SNT0444A000 Spring Set
This product has been discontinued

18 S44388000 Hanger Bar $33.84
