NuTone 8663RF Deluxe Fan-Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 8663RF Deluxe Fan-Light Parts

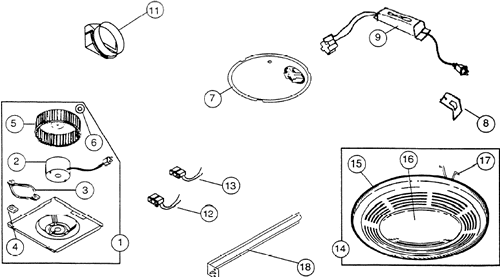

NuTone 8663RF Deluxe Fan-Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
  S99271311 18 Watt Flourcent Bulb-2Pin $26.55
1 S97017705 Power Unit Assembly(May Need To Use Old Bracket) $144.76
2 S89615000 Motor Modified Only ccw (1" d shaft to work w/5901a000) $152.28
3 S32787000 Motor Insul Mount Jas# 8114138 $27.26
4 S32788000 Ground Clip
This product has been discontinued
5 SNT5901A000 Blower Wheel - White Plastic, CCW, 6-1/8" X 2" $27.26
5 S10060300 Blower Wheel for the splined motor Cw, 6-1/8" X 2" $19.83
6 S63007000 Nut-Push 1/4 $0.86
8 S85936000 Lampholder Bracket $0.54
9 S85976000 Lampholder, Ballast & Plug
This product has been discontinued
11 S101183000 Duct Adapter $27.26
12 S82304000 Receptacle (White) $18.00
13 S99270982 Receptacle (Black) $18.00
14 S97017702 Glass Grille & Lens 15" Round $101.52
16 S61753000 Lens - Thin Glass 9 1/2" Round X 3/4" ( Not Like The Old Glass) $56.40
17 SNT0444A000 Spring Set $18.00
18 S44388000 Hanger Bar $33.84
