NuTone 8663DG Deluxe Fan-Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

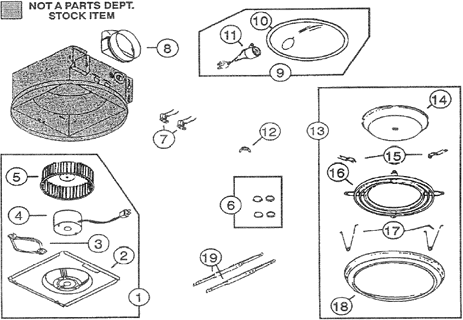

NuTone 8663DG Deluxe Fan-Light Parts
NuTone 8663DG Deluxe Fan-Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S97017705 Motor (splined ,Blade, Bracket ASSEMBLY(may need to use old bracket) $144.76
7 S99270982 Receptacle (Black) $18.00
4 S89615000 Motor Only (d shaft to work w/5901a000 $152.28
5 S10060300 Blower Wheel for the splined motor Cw, 6-1/8" X 2" $19.83
8 S101183000 Duct Adapter $27.26
5 SNT5901A000 Blower Wheel - White Plastic, CCW, 6-1/8" X 2" $27.26
15 S33426000 Retainer, Lens $0.10
17 SNT0444A000 Spring Set
This product has been discontinued

  58796000 Lens & Bezel
This product has been discontinued

  32834000 Bezel
This product has been discontinued

  750 New current production(WILL NOT FIT INTO EXISTING HOUSING)9x9housing 15" Round Grille $217.29
