NuTone 8662 Deluxe Fan-Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 8662 Deluxe Fan-Light Parts

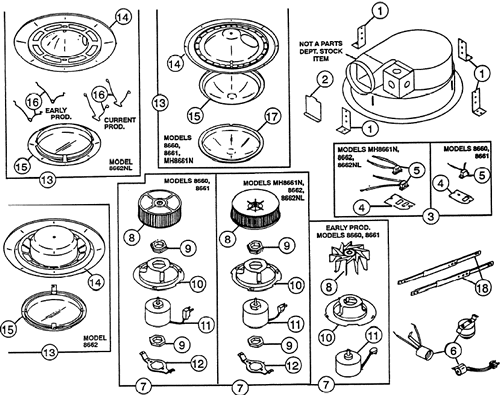

NuTone 8662 Deluxe Fan-Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  750 New Current Production(Will Not Fit Into Existing Housing) 15" round 9x9x6 housing $217.29
5 S99270982 Receptacle (Black) $18.00
8 SNT5901A000 Blower Wheel - White Plastic, CCW, 6-1/8" X 2" $27.26
8 S16296000 Metal Blower Wheel
This product has been discontinued

9 S19360000 Motor Mount Hex Jas# 8110181
This product has been discontinued

11 S23405SER Motor - #JA2C028-1, CCW, Shaft Size 3/4" (must use old motor brackets 10 & 12) $160.74
