NuTone 8490 Utility Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

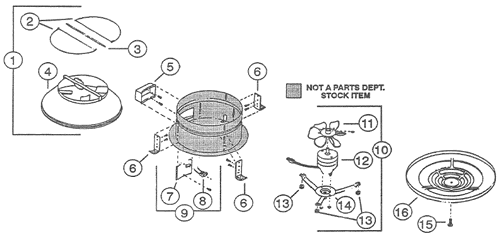

NuTone 8490 Utility Fan Parts
NuTone 8490 Utility Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
  S99010046 Filter - 11 1/2" Diameter $27.26
8 S99270982 Receptacle (Black) $18.00
11 17757000 Fan Blade $21.54
10 69062000 MOTOR ASSY Motor/Blade/Bracket (3 prong bracket)
This product has been discontinued
12 26754SER Motor Modified - CCW, Shaft Size 5/16" x 1 1/4", 2 PRONG 110 PLUG $105.76
16 S17703018 Metal Square Satin Finsih 11x11 $125.96
15 S97011918 White screw knob $18.00
16 S99111332 White plastic grill round 11" $42.30
  S99420585 screw (need knob to work with s99111332) $33.84
