NuTone 8310-B Utility Fan Side Discharge Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 8310-B Utility Fan Side Discharge Parts

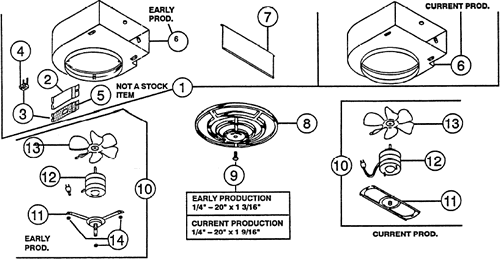

NuTone 8310-B Utility Fan Side Discharge Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  8310 "New" Complete 8310- will not fit into the original housing $189.66
  S99010042 Aluminum Filter - 9 1/2" Diameter $27.26
1 S98005500 Damper Flap $8.56
2 S98000977 Damper Rod $0.72
3 S99100379 Damper Bushing $18.00
4 S98003054 Mounting Bracket - Short $1.82
6 S98003036 Mounting Bracket $27.26
8 S98000985 Wiring Box Cover $7.70
9 S99170245 Sheet Metal Screw #8-18 X .375 $18.00
11 S99020165 Fan Blade $27.26
12 S99080355 Motor - Cw $75.20
13 S98007820 Motor Bracket
This product has been discontinued
16 S99260428 Motor Nut $18.00
17 S99111332 Grille - (Polymeric) (11" Round)White Plastic $42.30
19 S97011918 Grille Knob White $18.00
20 S99420585 Grille Stud(Need Knob 97011918) $33.84
21 S98007819 Grille Bracket $33.84
22 S99150471 Ground Screw $18.00
