NuTone 822H Utility Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 822H Utility Fan Parts

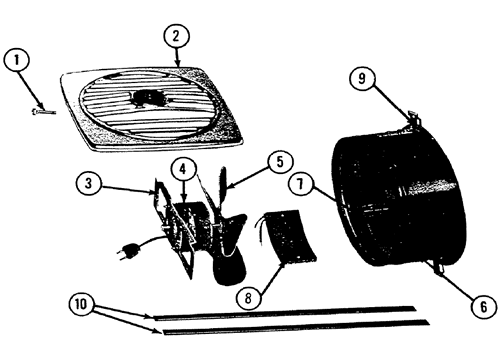

NuTone 822H Utility Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S97011918 White Knob (need s99420585 screw) $18.00
1 S99420585 Grille Screw (Needed W/ Knob/Grille) $33.84
  S99010042 Aluminum Filter - 9 1/2" Diameter $27.26
1 S11245001 Grille Screw Metal- 1/4" X 20" X 2", Silver(for original grille) $27.26
2 S99111332 Grille White ( Plastic 11" Round) $42.30
3 S11829000 Motor Bracket
This product has been discontinued
4 S26750SER Motor - #JA2C271 JA2C134, CCW, Shaft Size 1/4 " $181.42
5 S11805000 Fan Blade- Metal, 5 Blade, Ccw (7.75 wide w/ 1/4 diam) $50.76
