NuTone 8220 Utility Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 8220 Utility Fan Parts

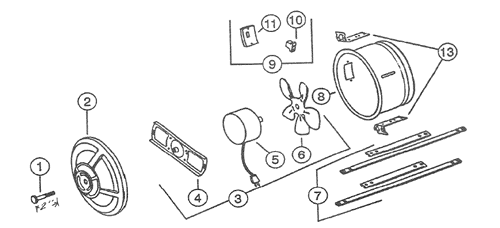

NuTone 8220 Utility Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 505 New production complete (will not fit into existing housing) $118.67
 834 Aluminum Filter - 9 1/2" Diameter (nutone) $17.19
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
 S99010042 Aluminum Filter - 9 1/2" Diameter (broan) $18.00
1S11245001 Grille Screw - 1/4" X 20" X 2", Silver (metal) $18.00
1S11245206 Grille Screw - 1/4" X 20" X 2", White (metal) $3.10
2S17703018 Brushed Aluminum "Square" 11x11SQUARE (not ROUND) $133.20
2S99111332 Grille - (Polymeric) (11" Round) Replaced Obsoleted Metal $39.60
3S97011918 Grille knob for white (plastic need s99420585 screw) $18.00
3S99420585 Grille Screw white 1 3/4 (not shown use with s97011918 knob) $18.00
3S69028000 B-Unit W/Motor,Blade,Bracket $279.00
4S11829000 Motor Bracket (Rectangle) $45.00
5S26750SER Motor - #JA2C271 JA2C134, CCW, Shaft Size 1/4 " $192.60
6S11805000 Fan Blade- Metal, 5 Blade, Ccw (7.75 wide w/ 1/4 diam) $54.00
10SNT10034000 Receptacle (Black) $4.00
