NuTone 8210 Utility Fan Vertical Discharge Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 8210 Utility Fan Vertical Discharge Parts

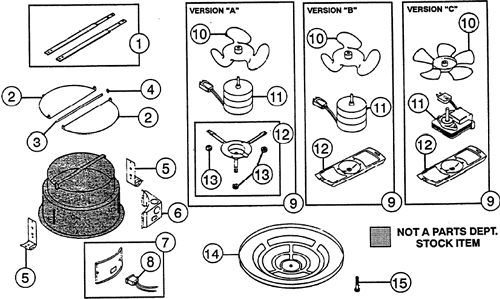

NuTone 8210 Utility Fan Vertical Discharge Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  505 New505 Complete (WILL NOT fit into existing housing) 8" DUCT $118.67
  834 Filter Aluminum 9.5 Nutone Round (Not Shown To Keep Grease Away From Motor)
This product has been discontinued
  S99010042 Aluminum Filter - 9 1/2" Diameter Broan(Not Shown To Keep Grease From Motor)) $27.26
2 S16754000 Damper Half $6.68
8 SNT10034000 Receptacle (Black) $18.00
9 S16665000 Motor Assembly. Includes: motor, fan, and bracket $211.50
10 S16631000 Metal 5fin Fan Blade cw 6" w/1/4 bore hole Use With 16653Ser Motor $41.36
13 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
10 S68293000 Fan Blade "C" Cw (5 Blade Plastic ) Use With Motor 34417 $27.26
11 S16653SER Motor Modified (CW 1" SHAFT 1/4diam) "A" - Original 1969 To Fit On Metal 3 Blade(Round Barrel) 1" Ja1C053 $101.75
16 S34417000 Motor "C" Cw- Shaft Size 1 3/4" (7/32" Dia. Shaft), (Use 5 Blade Plastic Fan (Cw 2800Rpm)Blade) $98.70
12 S17674000 Motor Bracket "C" (Rectangle) $61.10
14 S99111332 Grille - (Polymeric White Plastic) (11" Round) $42.30
15 S99420585 Grille Screw white 1 3/4 (not shown use with s97011918) $33.84
15 S97011918 Grille Knob( White Plastic need s99420585) $18.00
21 S11245001 Metal Screw $27.26
20 S17703018 Metal Square Satin Finish 11x11 SQUARE (not ROUND) $125.96
