NuTone 778WHNT Decorative Fan/Light 80 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 778WHNT Decorative Fan/Light 80 Cfm Parts

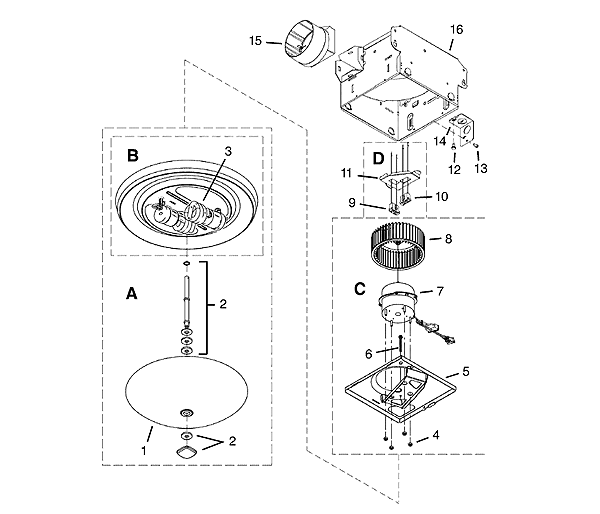

NuTone 778WHNT Decorative Fan/Light 80 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
S99526716 Glass Shade
This product has been discontinued

S97018016 Shade Mounting Hardward
This product has been discontinued

S99271393 Led Bulb, 13 Watt, Gu24, 3500K (flourcent obsoleted) $27.26
S97018311 Motor Plate $13.54
S99150583 Screw, #10 - 24 X 1.25" $18.00
S99080634 Motor
This product has been discontinued

S99020300 Blower Wheel Assembly
This product has been discontinued

S99270981 Receptacle - White $27.26
10  S99270982 Receptacle - Black $18.00
11  S98009612 Wiring Panel $18.00
12  S99150471 Ground Screw $18.00
13  S99170245 Sheet Metal Screw #8-18 X .375 $18.00
14  S98008868 Wiring Plate $18.00
15  S97003932 Duct Connector $27.26
16  S97014922 Housing $34.78
S97018015 Light Fixture Assembly (Includes Ref. Nos. 1, 2 & B)
This product has been discontinued

S99390176 Grille Pan Assembly
This product has been discontinued

S97018327 Blower Assembly (Includes Ref. Nos. 4 Thru 8) $87.42
S97015171 Wire Panel $27.26
