NuTone 765HL Bathroom Exhaust Fan/Heater Parts

Listed below are the parts available for this model.

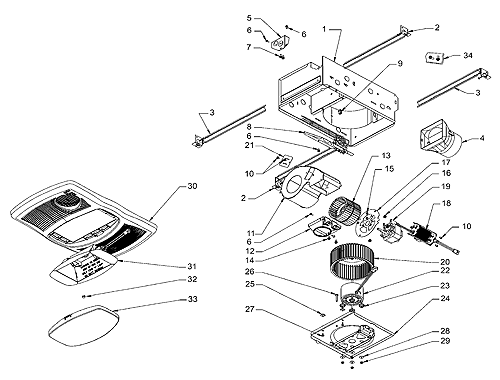

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 765HL Bathroom Exhaust Fan/Heater Parts
NuTone 765HL Bathroom Exhaust Fan/Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
0 BHFLED110 New Production Unit (16" x 10-1/4" x 5-7/8" Rough in size) (Grill Cover dimension 17 3/4" x 11 3/4") 110CFM 2.0 sones 1500watt heat $386.27
0 66V Optional Ivory Switch Assembly With Wall Plate (66V)
This product has been discontinued

0 66W Optional White Switch Assembly With Wall Plate (66W) 3 FUNCTION $43.42
0 77DW 4 Function single gang Swtich White ( FVWCSW41-W replacement)
This product has been discontinued

1 S97017572 Housing Only (Can in Ceiling Only) - Does Not Include Receptacles, Screws KO's, Damper etc. $37.12
2 S97017712 Right Slide Hanger Bar (2-Required) $27.26
3 S97017711 Left Slide Hanger Bar (2-Required) $27.26
4 S97016449 Damper 4" Duct Connector $27.26
5 S98010407 Electrical Knockouts for Housing $27.26
6 S99170245 Sheet Metal Screw $18.00
7 S99150471 Ground Screw $18.00
8 S97017713 Wire Panel $27.26
10 S99150415 Sheet Metal Screw $27.26
11 S97017609 Heater Scroll $59.22
11 S97020890 Heater Assembly (Heat Motor,Housing, Blade) $165.44
12 S98010405 Heater Transition (Part of Heater Assy.) $27.26
13 S99020294 Wheel for Heater Motor $59.22
15 S99260428 Motor Nut $18.00
16 S99260488 Nut $18.00
17 S98010409 Heater Motor Bracket $5.06
18 S97020888 Heater Element $51.70
19 S99080606 Motor for Heater
This product has been discontinued

19 S97017769 Vent Assembly (Exhaust Motor,Housing, Blade)
This product has been discontinued

20 S99020293 Wheel for Exhaust Fan Motor
This product has been discontinued

21 S98010089 Heater Element Mounting Bracket $33.84
22 S99080602 Motor for Exhaust Fan $93.06
23 S99100491 Isolator Rubber Bushings for Exhaust Motor (4 Required) $27.26
24 S97017606 Partition/Bracket For Exhaust Motor $27.26
25 S93260454 Nut $27.26
26 S99150583 Grille Screw/Stud That Acorn Nut Attaches To $18.00
27 S93150459 Screw $27.26
28 S99250959 Washer for Exhaust Motor ( 4-Required) $18.00
29 S99260558 Nut f/ Attaching Exhaust Mtr. 4-Required $18.00
30 S1101173 Grille & Lens 18 7/8 x 12 3/8 $103.40
30 S97017663 Grille & Lens replacement for s99111414 19x12.5 SEE S1101173
This product has been discontinued

30 FG110HBS Upgrade Grille/Lens 3 optional Light Color changes (17.75 X 11.75X3 Upgrade With Dimmable LED and Color Adjustable CCT Lighting) 17.75" x 11.75" x 3" $98.08
31 S97017686 Light Reflector $27.26
31 S97017688 Light Reflector Assy. Incl. Light Socket $33.84
32 S97005316 Acorn Nut for Attaching Grille/Reflector #10-24 $27.26
33 S99111414 Light Lens THEN SEE s97017663
This product has been discontinued

34 S97017739 Screw Hardware Bag $27.26
