NuTone 765HFL Bathroom Exhaust Fan/Heater Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

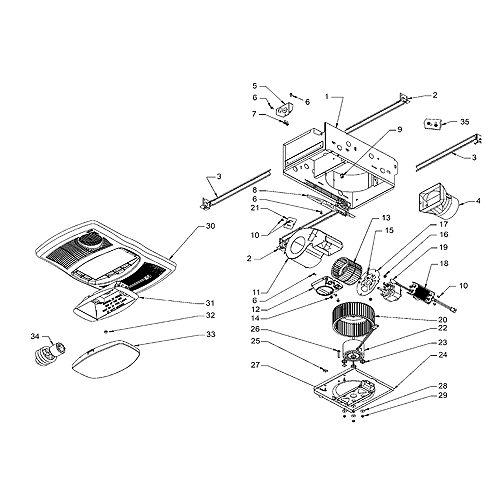

NuTone 765HFL Bathroom Exhaust Fan/Heater Parts
NuTone 765HFL Bathroom Exhaust Fan/Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
0 BHFLED110 New Production Unit (16" x 10-1/4" x 5-7/8" Rough in size) (Grill Cover dimension 17 3/4" x 11 3/4") 110CFM 2.0 sones 1500watt heat $386.27
0 66V Optional Ivory Switch (66V) single gang 3 function
This product has been discontinued

0 66W Optional White Switch (66W) single gang 3 function $43.42
1 S97017572 Housing Only (Can in Ceiling Only) - Does Not Include Receptacles, Screws KO's, Damper etc. $37.12
0 S97020890 Heater Assembly (Includes 10,19,,16,17,15,13,11) $165.44
0 S97017769 Blower Assembly (Includes 20 Thru 29)
This product has been discontinued

2 S97017712 Right Slide Hanger Bar (2-Required) $27.26
3 S97017711 Left Slide Hanger Bar (2-Required) $27.26
4 S97016449 Duct Connector-4" $27.26
5 S98010407 Electrical Knock Out Panel $27.26
6 S99170245 Sheet Metal Screw #8-18 X .375 $18.00
7 S99150471 Ground Screw $18.00
8 S97017713 Wire Panel W/3 HFL Female Receptacles $27.26
10 S99150415 Sheet Metal Screw $27.26
11 S97017609 Heater Scroll $59.22
12 S98010405 Heater Transition (Part of Heater Assy.) $27.26
13 S99020294 Heater Wheel $59.22
15 S99260428 Motor Nut $18.00
16 S99260488 Nut $18.00
17 S98010409 Heater Motor Bracket $5.06
18A S98010089 Heater Element Mounting Bracket $33.84
18 S97020888 Heating Element $51.70
19 S99080606 Heater Motor
This product has been discontinued

20 S99020293 Blower Wheel - 6 1/2 " X 2 3/4", Ccw, White Plastic
This product has been discontinued

21 S98010089 Mounting Bracket-Heater $33.84
22 S99080602 Fan Motor - Shaft Size 1 1/2", Ccw $93.06
23 S99100491 Rubber Mount Isolator (4 Required) $27.26
24 S97017606 Partition Assembly $27.26
25 S93260454 Nut $27.26
26 S99150583 Grille Screw/Stud That Acorn Nut Attaches To $18.00
27 S93150459 Screw $27.26
28 S99250959 Washer for Exhaust Motor ( 4-Required) $18.00
30 S97017663 Grille &Lens replacement for s99111414 19x 12.5 SEE S1101173
This product has been discontinued

30 FG110HBS Upgrade Grille/Lens 3 optional Light Color changes (17.75 X 11.75X3 Upgrade With Dimmable LED and Color Adjustable CCT Lighting) 17.75" x 11.75" x 3" $98.08
30 S1101173 Grille Only - (18 7/8x12 3/8") see s97017663 lens $103.40
31 S97017672 Reflector Assembly $42.30
29 S99260558 Nut, Hex Lock #8-32 $18.00
32 S97005316 Acorn Nut $27.26
33 S99111414 Light Lens OBSOLETE see 1101173
This product has been discontinued

34 S99271360 Fluorescent Lamp, 27W 3500K, Gu24 $26.59
35 S97017739 Screw Hardware Bag $27.26
