NuTone 757SNNT Decorative Exhaust Fan/ Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 757SNNT Decorative Exhaust Fan/ Light Parts

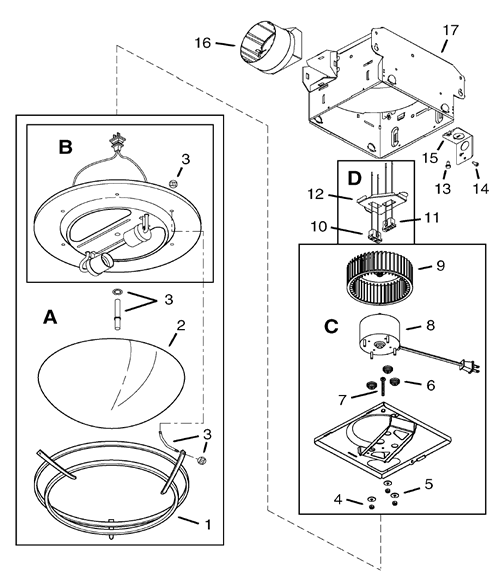

NuTone 757SNNT Decorative Exhaust Fan/ Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S97016630 Motor Mounting bracket $9.61
  S99260425 Motor Mounting Nut (3 Required & Sold Individually) $2.40
2 S97016714 Glass Shade
This product has been discontinued

3 S97016717 Shade Mounting Hardware
This product has been discontinued

4 S99260558 Nut, Hex Lock #8-32 $18.00
5 S99250959 Washers #8 C .625 (4 Required) $18.00
6 S99100491 Rubber Mount Isolator (4 Required) $27.26
7 S99150618 Grille Screw w/ nut $18.92
8 97016722 Motor Modified - #JA2C55 ccw 1/4 d 1 1/4length $95.74
9 S99020276 Blower Wheel - 5 1/2" X 2 1/8", Ccw, Black Plastic
This product has been discontinued

10 S99270981 Receptacle - White $27.26
12 S98009612 Wiring Panel $18.00
13 S99150471 Ground Screw $18.00
14 S99170245 Sheet Metal Screw #8-18 X .375 $18.00
15 S98008868 Wiring Plate $18.00
16 S97014185 Damper/Duct Connector Assy $27.26
17 S97014922 Housing Assy $34.78
A S99525323 Light Fixture Assembly
This product has been discontinued

C 97016671 Blower Assembly Modified replacment
This product has been discontinued

D S97015171 Wire Panel Assy $27.26
