NuTone 697 Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

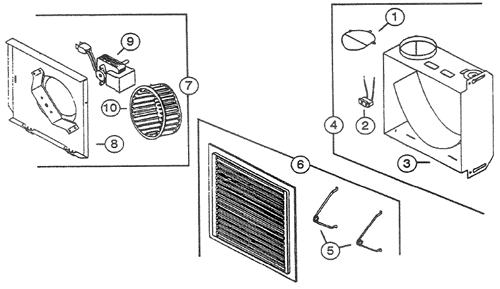

NuTone 697 Exhaust Fan Parts
NuTone 697 Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 29865000 Louver $18.00
2 S99270982 Receptacle (Black) $18.00
6 S97017607 Grille Assembly - (10 1/2" X 10 1/2") $33.84
9 68738000 Motor Modified - Shaft Length 1-5/8", Ccw - Obsolete Modified $83.76
10 S82403000 Blower Wheel - White Plastic, 5"X 1 1/4" $27.26
10 65462000 Compression Clip To Hold Blower Wheel On Motor Shaft $1.48
