NuTone 695-R01 Exhaust Fan 70Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 695-R01 Exhaust Fan 70Cfm Parts

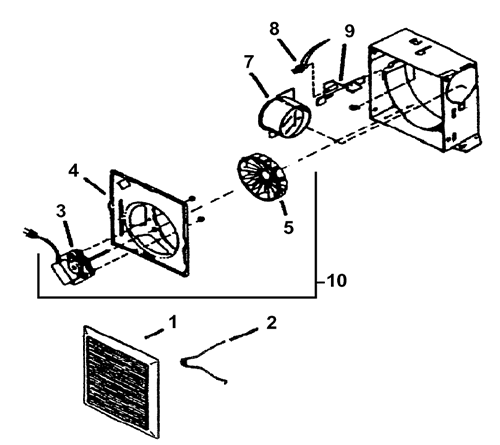

NuTone 695-R01 Exhaust Fan 70Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  695 Brand New Production (Will Not Fit Into Existing Housing) $54.65
1B S97017607 Grille W/Springs (10.5 X 10.25) $33.84
1 S97017068 Grille W/Springs (9 X 8 3/4) $27.26
2 82429000 Spring
This product has been discontinued

  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
3 S61312000 Motor - CCW (Mounts Same Side As Shaft) $79.90
5 S82403000 Blower Wheel - White Plastic, (5"X 1 1/4") $27.26
5A 65462000 Compression Clip To Hold Blower Wheel On Motor Shaft $1.48
7 S97016377 Duct Adapter only works with the E-J models $27.26
9 S99270982 Receptacle (Black) $18.00
9 82432000 Outlet Box
This product has been discontinued

10 S97008321 Power Unit Assembly For Version Ghij (Motor,Blade,Bracket ) $77.08
  FG500NS Upgrade Grille/Led Light 10.25x9.75 $40.18
  FG600NS Upgrade Grille/Led Light 10.25x 9.75 $40.18
  FG600RGBS Upgrade Grille Assembly, Color Change LED 10.25 x 9.75 $87.62
  FG800RGBS Upgrade Grille, Blue Tooth Speaker, Color Change Led Light 10.25 x 9.75 $84.64
  FG800SPKS Upgrade Grille, Blue Tooth Led Light 11x9.75 $86.63
