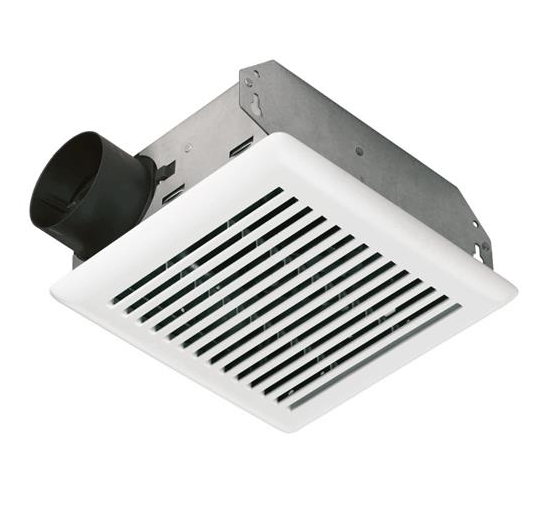

NuTone 695 Ceiling Mount Ventilation Bathroom Exhaust Fan 70 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 695 Ceiling Mount Ventilation Bathroom Exhaust Fan 70 Cfm Parts

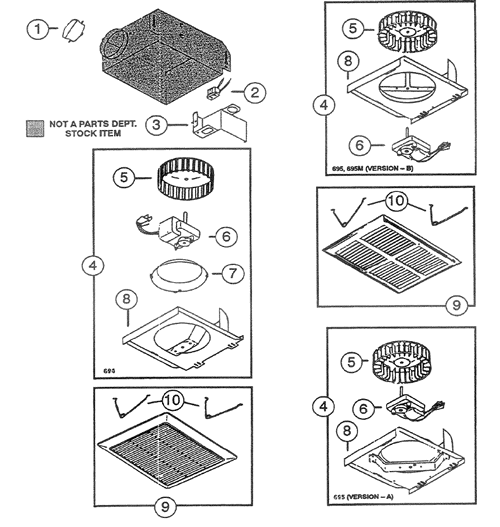

NuTone 695 Ceiling Mount Ventilation Bathroom Exhaust Fan 70 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  BE8 Brand New Production (Will Not Fit Into Existing Housing)7.5x7.25x5.75 rough grille 9.75x9.75 $78.94
0 FG500NS Upgrade Grille/Cover w/ LED Light (11 x 9 3/4) $40.18
0 FG600S Upgrade Grille/Cover w/ LED Light (FG600S) $40.18
0 FG800SPKNS Bluetooth Upgrade Grille/Cover w/ LED Light 11" x 9-3/4" x 2" grille
This product has been discontinued
  FG800RGBS UPGRADE GRILLE ASSEMBLY - Blue Tooth Speaker -Color Change Led 10.24 x 9.75 $87.83
  FG600RGBS Upgrade Grille Assembly, Color Change LED 10.25 x 9.75 $69.14
  BKR60 Upgrade Kit 60 cfm 3.0 sones ( housing7-1/2" x 7-1/4/ 8" x 7-1/4/8-1/16" x 7-3/8" $65.41
9 S97017068 Grille W/Springs (9 X 8 3/4) $27.26
9B S97017607 Grille W/ Springs (10.5 X 10.25) $33.84
1 29865000 Louver $27.26
2 S99270982 Receptacle (Black) $29.50
5 S82403000 Blower Wheel - White Plastic, (5"X 1 1/4") $27.26
6 S61312000 Motor - CCW (B Version - Post Same as Shaft) $79.90
5A 65462000 Compression Clip To Hold Blower Wheel On Motor Shaft $1.48
6 68738000 Motor - Shaft Length 1-5/8", CCW - (A version post under) Modified replacement $83.76
