NuTone 694 Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 694 Exhaust Fan Parts

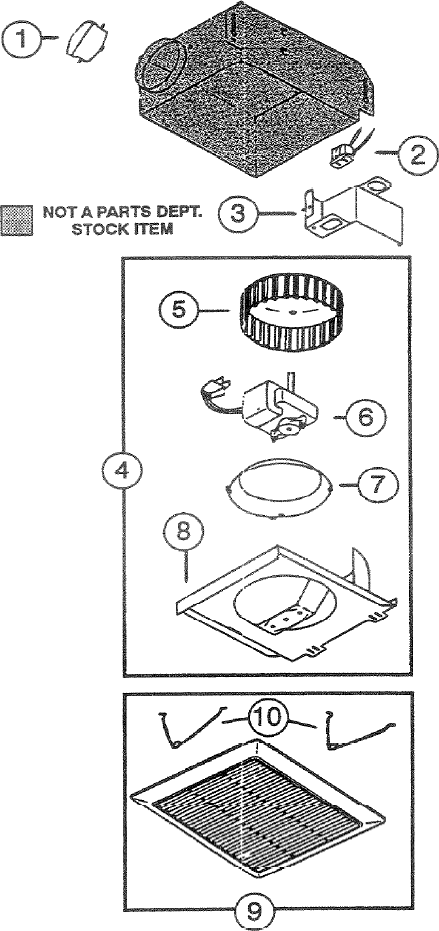

NuTone 694 Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
129865000 Louver $18.00
2S99270982 Receptacle (Black) $18.00
5S82403000 Blower Wheel - White Plastic, (5"x 1 1/4") $18.00
5A65462000 Compression Clip Holds Blade Onto Motor Shaft $1.48
668738000 Motor Modified Replacement- Shaft length 1-5/8", CCW - Obsolete $83.76
9S97017068 Grille w/Springs (9" x 8 3/4" x 1/2") $22.50
9BS97017607 Grille w/Springs (10 1/2 x 10 1/4) $28.80
