NuTone 686 Vertical Discharge Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 686 Vertical Discharge Fan Parts

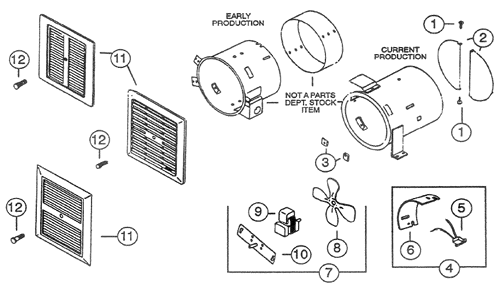

NuTone 686 Vertical Discharge Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  673 New Production (will not fit into existing housing)
This product has been discontinued

2 16754000 DAMPER HALF $6.68
5 S99270982 RECEPTACLE (BLACK) $18.00
7 15588000 POWER UNIT (Replaced by 1315A000)
This product has been discontinued

7 S1315A000 MOTOR, BLADE, BRACKET $143.82
8 S33194000 Fan Blade 5 PLASTIC BLADE (to work on s1200a assembly) $27.26
9 S1200A000 MOTOR W Plug/ 5- BLADE Plastic 6.5 dim (replaced older motor/metal blade) $109.04
10 S15589000 MOTOR BRKT $46.06
11 S13178018 Grille Metal White - (10 1/2" X 10 1/2" X 1/2" W/ Center Hole) $57.34
11 S30430000 GRILLE - Plastic White (9-1/2" X 8-3/4") $27.26
12 21988001 GRILLE SCREW - Aluminum 1/4-20X1 3/16 $2.16
12 S66716000 GRILLE SCREW - Plastic 1/4-20X1 $27.26
