NuTone 684NT Bathroom Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 684NT Bathroom Exhaust Fan Parts

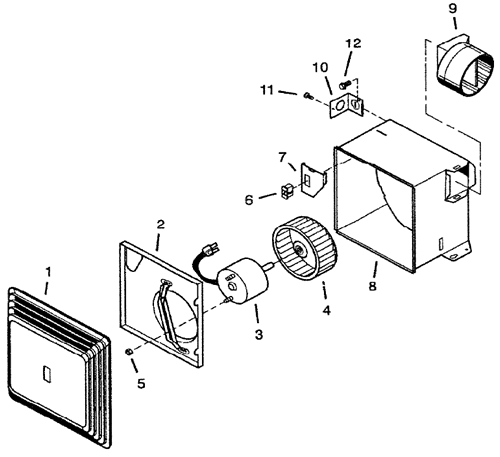

NuTone 684NT Bathroom Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 S99140192 Springs for Grille $18.00
1 S97013576 Grille W/springs 10 5/8 X 11 1/8) $27.26
1 S97016150 Grille w/ Springs $27.26
  S97013574 Grille W/springs 10 5/8 X 11 1/8) $27.26
2 S97015159 Fan Assembly (Motor,Blade and Plate) $111.86
2 S97014926 Mounting Plate for Motor $30.60
3 S99080518 Motor ccw-684D $70.50
4 S99020276 Blowr Wheel cw plastic
This product has been discontinued

  S99260425 Mounting Nuts for #8-32 (need 2 sold each) $2.40
  S97015170 WirePanel Harness includes Blace Receptacle $67.68
  S99270982 Fan Receptacle Black $18.00
  S98009611 Wire Panel Cover $27.26
  S97014922 Housing $34.78
  S97003932 Damper Duct Connector 4" Round $27.26
  S98008868 Wire Knock out panel $18.00
  S99170245 Self Tapping Mounting Screws #8-18x3/8" $18.00
  S99150471 Screw #10-32x1/2" $18.00
0 FG800SPKNS Bluetooth Exhaust Fan Grille/Cover w/ LED Light (fits housings 7.5X7.25 & 8.25 X 8) $98.44
1 FG500S Upgrade Grille & Led Light W/springs 11" x 9-3/4" x 2" grille) $40.18
  FG600S Upgrade Grille & Led Light W/springs 11" x 9-3/4" x 2" grille) $40.18
  FG800RGBS UPGRADE GRILLE ASSEMBLY - Blue Tooth Speaker -Color Change Led (10.25x 9.75 ) $84.64
  FG600RGBS Upgrade Grille Assembly, Color Change LED (10.25 x 9.75 ) $87.62
  FG800SPKS Bluetooth Upgrade Grille/Cover w/ LED Light (11" x 9-3/4" x 2" grille ) $86.63
