NuTone 683 Exhaust Fan Parts

Listed below are the parts available for this model.

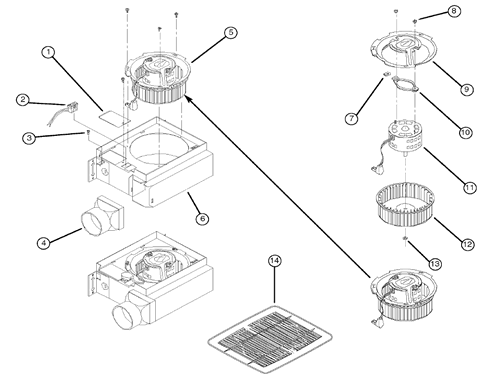

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 683 Exhaust Fan Parts
NuTone 683 Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
0FG500NS Bathroom Exhaust Fan Grille/Cover w/ LED Light (11 x 9 3/4) $33.74
0FG600S Bathroom Exhaust Fan Grille/Cover w/ LED Light (FG600S) $33.74
123383000 Outlet Box Cover $3.10
2S99270982 Receptacle (Black) $4.00
4S85209000 Duct Adapter Assy $4.20
5S84756000 B Unit Assy $134.00
7S32788000 Ground Clip $0.56
8S61590000 Grommet Nut $0.80
9S42199000 Motor Mtg Plate
10S32787000 Motor Insul Mount Jas# 8114138 $3.82
11SNT86652000 Motor - Ja2B099N, Shaft 1/4" X 1", CCW, 2 Prong Plug $53.95
12SNT5901A000 Blower Wheel - White Plastic, Cw, (6-1/8" X 2") $16.58
1363007000 Nut-Push 1/4 $0.86
14SNT84719000 Grille Plastic W/Springs - (9 3/8 X 10 3/4) $18.13
14S97017032 Plastic Grille (11 1/8 X 11 3/8) "C" Version $9.18
