NuTone 682LNT Non-Ducted Fan-Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 682LNT Non-Ducted Fan-Light Parts

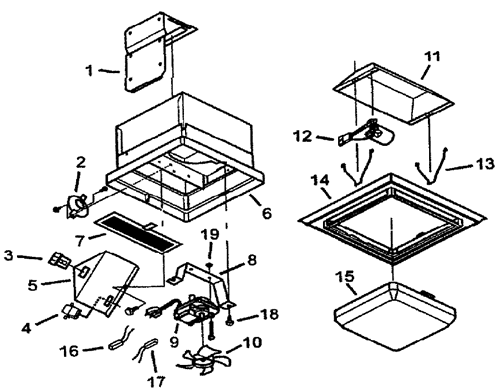

NuTone 682LNT Non-Ducted Fan-Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1S20055-02 Mounting Bracket $7.16
2S75999-00 Knockout Plate $0.90
4S02142-01 Receptacle White $2.06
5S20126-04 Wiring Cover $1.57
7S97009563 Filter 682NT (6 7/8 X2 3/16) $18.00
8S25083-01 Motor Bracket $3.50
9S02200-41 Motor - #J238-038-3226, CW $35.10
9S97009793 Fan Assembly $59.45
10S99020187 Fan Blade $18.00
11S25269-00 Light Reflector $18.00
12S02153-08 Light Socket $18.00
13S99140187 Grille Spring for 97011723 Grille - 2 Req.(g,h, j,k) $18.00
14S97009649 Grille W/ Springs No Lens- (9 1/4" X 9 1/4") 7.5 spring gap
This product has been discontinued
15S76079-00 Light Lens 6-3/8 x 6-3/8 $41.40
16S02189-01 Thermal Protector - Light
This product has been discontinued
17S02189-00 Thermal Protector - Motor $11.55
18S03100-32 Screw $0.61
19S04200-14 Nut $0.04
