NuTone 671R Ceiling Exhaust Fan 90Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 671R Ceiling Exhaust Fan 90Cfm Parts

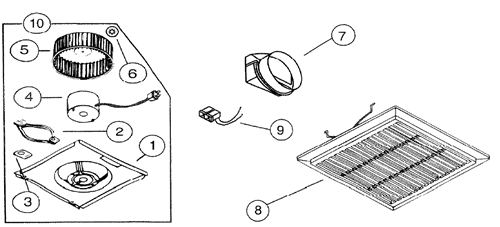

NuTone 671R Ceiling Exhaust Fan 90Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  AE110 New Production (Will Not Fit Into Existing Housing) $155.26
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
2 S32787000 Motor Insul Mount Jas# 8114138 $27.26
3 32788000 Ground Clip
This product has been discontinued

4 S97017708 Motor, Blade & Bracket Assembly (90 cfm) $152.00
4 S89615000 Motor D Shape Shaft To Work On 5901A Blade $152.28
5 S10060300 Blower Wheel for the splined motor Cw, 6-1/8" X 2" $19.83
5 SNT5901A000 Blower Wheel - White Plastic, CCW, 6-1/8" X 2" $27.26
6 63007000 Nut-Push 1/4 $0.86
7 S101183000 Duct Adapter $27.26
8 S97017607 Grille W/Springs- (10 1/2" X 10 1/2") $33.84
9 S99270982 Receptacle (Black) $18.00
  FG500NS Upgrade Grille/Cover w/ LED Light (11 x 9 3/4 spring gap 7") $40.18
  FG600S Upgrade Grille/Cover w/ LED Light (11 x 9 3/4 spring gap 7") $40.18
  FG800SPKNS Bluetooth Exhaust Fan Grille/Cover w/ LED Light( 11" x 9-3/4" x 2" grille) $85.60
  FG800RGBS UPGRADE GRILLE ASSEMBLY - Blue Tooth Speaker -Color Change Led (10.25x 9.75 ) $84.64
  FG600RGBS Upgrade Grille Assembly, Color Change LED (10.25 x 9.75 ) $87.62
  FG800SPKS Bluetooth Upgrade Grille/Cover w/ LED Light (11" x 9-3/4" x 2" grille ) $86.63
