NuTone 660RP Valuetest Heat-A-Lite Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 660RP Valuetest Heat-A-Lite Parts

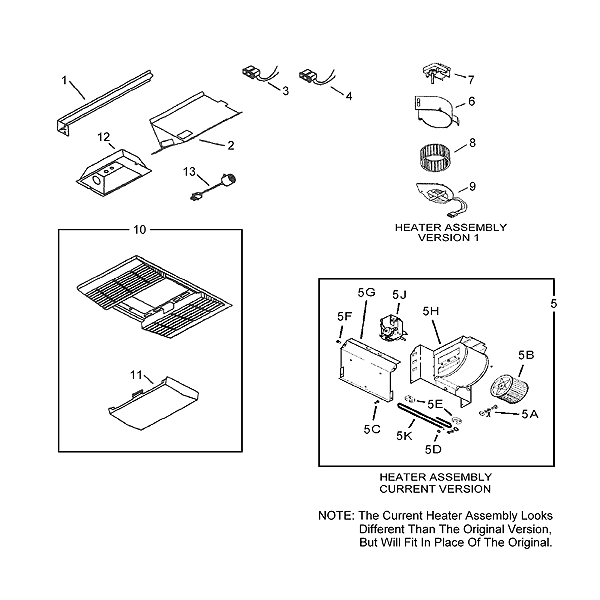

NuTone 660RP Valuetest Heat-A-Lite Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  655 Brand New Production (Will Not Fit Into Existing Housing)
This product has been discontinued
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S44388000 Hanger Bar $33.84
2 S88553000 Outlet Box Cover $1.13
3 S99270981 Receptacle - White $27.26
4 S99270489 Receptacle - (Red) $27.26
5 S97017648 Heater Kit Complete (New Current Metal housing 2010 ) $120.32
5A S97005058 Bolt (New Current Metal housing 2010 ) $18.00
5B S99020290 Blower Wheel (New Current Metal housing 2010 ) $27.26
5E S99270107 Heater Hooks (New Current Metal housing 2010 ) $27.26
  88568000 Motor, Blade, Element, Screws (must have plastic housing) $90.00
9 88568000 Heater Kit - Version 1 Plastic (Includes 6,7,8,9)
This product has been discontinued
5G S98010295 Heater Scroll Cover (New Current Metal housing 2010) $27.26
5H S97017070 Heater Scroll Housing (New Current Metal housing 2010) $29.14
5J S99080593 Heater Motor - CCW, For Current Version Fits Into Metal Housing #6 (2008 & Newer) $47.94
5K S98004514 Heater Element (New Current Metal housing 2010) $27.26
7 S88569000 Heat Motor Only -For Version 1 Fits Into The Plastic Housing) $98.70
8 S66583000 Blower Wheel - (Heat), Cw, 3 3/4" X 2" (version #1 plastic housing) $24.30
9 S0969B000 Heater Element (Includes Thermal Protector) (version #1 plastic housing) $88.36
10 S89852000 Grille & Lens (16 1/4" X 9 3/4" X 1 3/4") $67.68
19 S53740000 Lens - (5 1/4" X 9 3/4") $27.26
12 S89765000 Reflector $27.26
21 S99770112 Lamp Socket - 100W $27.26
  S98010306 Light Reflector $33.84
