NuTone 63000 Rangemaster Provisa Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 63000 Rangemaster Provisa Hood Parts

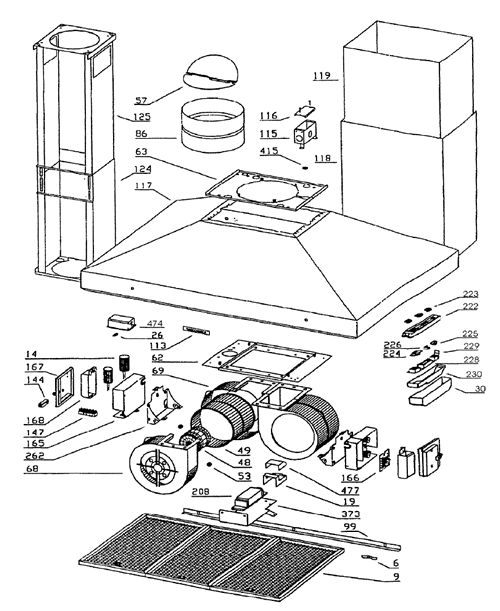

NuTone 63000 Rangemaster Provisa Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 SB06001772 Blower Assy $731.09
 SB06106294 Motor Capacitor W/Wires
This product has been discontinued

 SB06106297 Switch Assy $61.31
 SB06106298 Control Terminal Block $55.80
 SB080810199 Duct Connector Assy $76.27
6SB02000191 Filter Spring $18.00
9SB08087485 Grease Filter (10 1/8 X 15 1/4) $68.40
14SB02300730 Motor Capacitor
This product has been discontinued

19SB03295005 Terminal Box
This product has been discontinued

30SB03292291 Switch Cover $15.83
48SB02310094 Motor
This product has been discontinued

53SB03204177 Rubber Washer
This product has been discontinued

57SB08089242 Damper $60.34
68SB02011064 Right Blower Housing $55.39
69SB02011063 Left Blower Housing $43.08
86SB08088242 Duct Connector $55.61
99SBE3334373 Filter Channel $12.26
113SB03202433 Nameplate $23.72
115SBE3495228 Wiring Box
This product has been discontinued

116SBE3334252 Wiring Box Cover
This product has been discontinued

118SBE3407823 Decorative Flue Bottom $266.00
119SBE3407816 Decorative Flue Top $0.00
125SB03109014 Support Frame Top $92.12
144SB03292287 Wire Clamp $2.61
147SBR2300134 Terminal Block $11.53
165SB03292161 Control Board Box $29.61
166SB08080101 Control Board $21.60
167SB03292162 Control Board Box Cover $21.28
168SB03292163 Capacitor Box Cover $10.32
208SB02300729 Transformer
This product has been discontinued

223SB03292294 Switch Button
This product has been discontinued

474SB02300719 Halogen Lamp Housing
This product has been discontinued

477SB03295006 Terminal Cover $40.50
