NuTone 606 Utility Fan Exhaust Outside Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 606 Utility Fan Exhaust Outside Parts

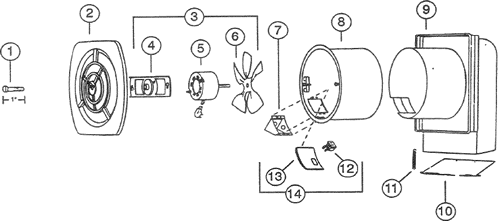

NuTone 606 Utility Fan Exhaust Outside Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
2 17707018 Grille - 13 1/2" Square, Satin Nickel obsoleted see 970138258
This product has been discontinued
  970138258 Grille Metal White/Knob 13.5 (Need 99420585 Screw Broan Grille) $41.24
  S99420585 Screw1 3/4 Long For Use With The 97013825 Grille $33.84
3 S16665000 Motor Assembly. Includes: motor, fan, and bracket $211.50
4 S11829000 Motor Bracket
This product has been discontinued
5 S26750SER Motor - #JA2C271 JA2C134, CCW, Shaft Size 3/4 " $181.42
6 S11805000 Fan Blade- Metal, 5 Blade, Ccw (7.75 wide w/ 1/4 diam) $50.76
12 S99270982 Receptacle (Black) $18.00
