NuTone 605RP Bathroom Heater with Ventilation Fan
Heat-A-Vent Fan-Forced Heater

Listed below are the parts available for this model.

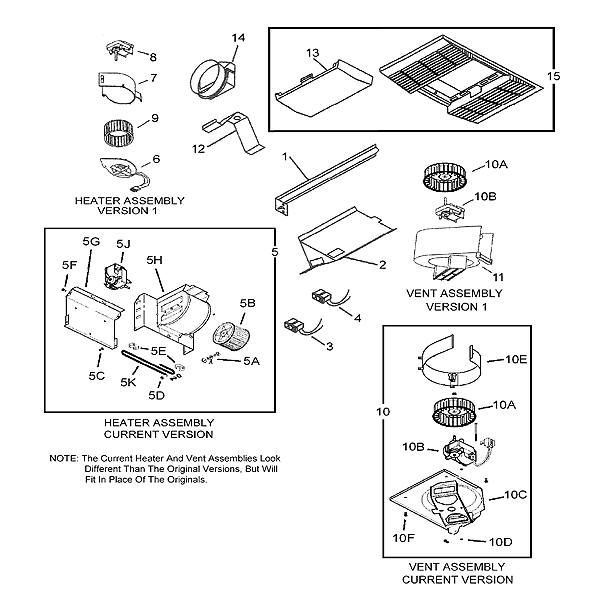

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."
NuTone 605RP Bathroom Heater with Ventilation Fan Heat-A-Vent Fan-Forced Heater
NuTone 605RP Bathroom Heater with Ventilation Fan Heat-A-Vent Fan-Forced Heater  breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
notshown605RP Complete New 605RP may not fit into existing housing $102.07
 88568000 HEATER ASSY - Version 1 Plastic includes 6,7,8,9 $56.70
1S44388000 HANGER BAR $2.81
288553000 OUTLET BOX COVER $1.13
3S99270489 RECEPTACLE - (RED) $2.26
4S99270982 RECEPTACLE - BLACK $1.94
5S97017648 HEATER ASSEMBLY COMPLETE (Metal New 2010 ) $61.10
589844000 HEATER ASSEMBLY $88.13
5S97011810 THERMO LINK for (Metal New 2010) $7.96
5AS97005058 BOLT ASSEMBLY $2.98
5BS99020290 BLOWER WHEEL $10.40
5DS93260457 NUT, #10 - 32 $0.72
5ES99270107 HEATER HOOKS $0.72
5GS98010295 HEATER SCROLL COVER $6.18
5HS97017070 HEATER SCROLL HOUSING $11.88
 86693000 VENT MOTOR ASSY - Motor/Blade/Plastic Housing, prior to 2005 (includes 12A,14,15) $46.35
5JS99080593 HEATER MOTOR - CCW, for Current version fits into Metal housing #6 (2008 & Newer) $31.70
5KS98004514 HEATER ELEMENT $8.56
60969B000 HEATER ELEMENT ASSEMBLY - (Includes Thermal Protector) $23.11
761579000 SCROLL $5.58
1589852000 GRILLE & LENS ASSEMBLY $31.17
888569000 HEAT MOTOR ONLY - for Version 1 fits into the plastic housing $40.61
966583000 BLOWER WHEEL - (Heat), CW, 3 3/4" x 2" $16.90
10S97017646 VENT ASSEMBLY COMPLETE $33.66
10A82403000 BLOWER WHEEL - White Plastic, 5"x 1 1/4" $4.01
10BS99080592 MOTOR - VENT $30.60
10CS97017080 MOTOR MOUNTING PLATE $9.74
10DS99260428 MOTOR NUT $0.72
10ES98010286 SCROLL BAND $5.96
1285604000 STRAP $0.76
11C65462000 COMPRESSION CLIP $1.48
1353741000 LENS - White plastic lens 10" x 5 1/4" $7.74
26101183000 DUCT ADAPTER ASSEMBLY $3.94
1589883000 GRILLE AND LENS ASSEMBLY. Please see item # 89852000 as replacement.
Discontinued, no longer available. Please call for possible alternatives.
