NuTone 605P Valuetest Heat-A-Vent Parts
Fan Replacement PDF
Heater Replacement PDF

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 605P Valuetest Heat-A-Vent Parts

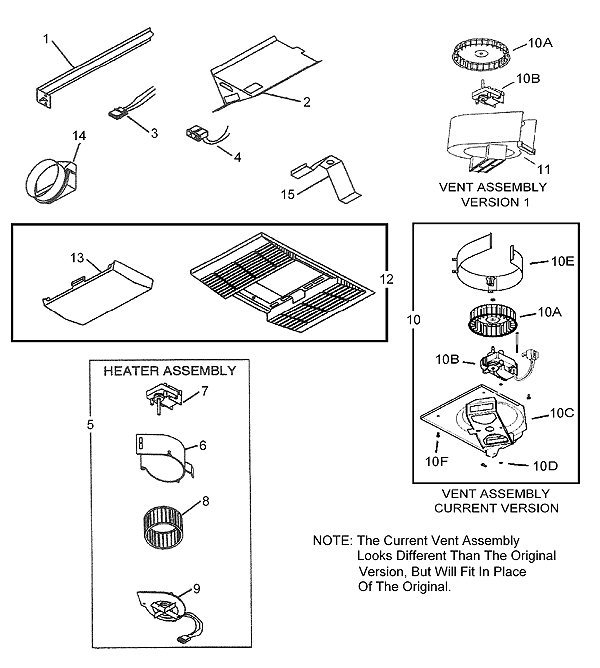

NuTone 605P Valuetest Heat-A-Vent Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  605RP New Current Production (Will Not Fit Into Existing Housing)
This product has been discontinued

1 S44388000 Hanger Bar $33.84
3 S89843000 Plug Hsg Assy (Heat) $9.30
4 57976000 Receptacle $18.00
5 89844000 Heater Assembly(Plastic 7,8,9,10)
This product has been discontinued

  89844KIT Rebuild Kit for heater assembly, included motor, wheel, heat element, and screws. (Must re-use exsisting plastic housing) $171.11
6 S61579000 Scroll Heater
This product has been discontinued

8 S66583000 Blower Wheel - Heat, Cw, (3 3/4" X 2") $24.30
9 S89756000 Heater Element (Includes Thermal Protector w/ 3 prong plug) $115.62
10 S97017646 Vent Assembly Complete (New Metal Flate Plate current version) $91.18
10A S82403000 Blower Wheel - White Plastic, (5"X 1 1/4") $27.26
10B S99080592 Motor - Vent For Flat Metal Bracket $67.68
11 86693000 Vent Motor Assy - MotorModified/Blade To Fit Into Your Plastic Housing, Prior To 2005 (Uncude 10A,10B)) $72.82
11C 65462000 Compression Clip $1.48
10C S97017080 Motor Mounting Plate $27.26
10D S99260428 Motor Nut $18.00
13 S53740000 Lens - (5 1/4" X 9 3/4") $27.26
10E S98010286 Scroll Band $27.26
10F S99150576 Screw, #8 X 3/8" Sheet Metal $27.26
12 S89852000 Grille & Lens (16 1/4" X 9 3/4" X 1 3/4") $67.68
14 S101183000 Duct Adapter $27.26
15 S85604000 Strap
This product has been discontinued
