NuTone 603 Utility Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 603 Utility Fan Parts

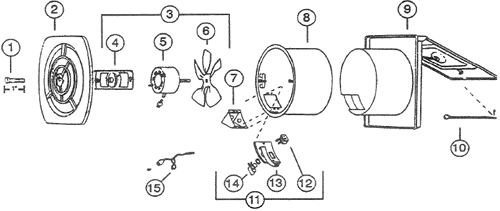

NuTone 603 Utility Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S99420585 Screw (1 3/4) Long For Use With The 97013825 Grille $33.84
2 17707018 Grille - 13 1/2" Square, Satin Nickel
This product has been discontinued

2 S97013825 Grille Metal White /Knob 13.5 (Need 99420585 Screw Broan Grille)
This product has been discontinued

3 S16665000 Motor Assembly. Includes: motor, fan, and bracket $211.50
4 S11829000 Motor Bracket
This product has been discontinued

5 S26750SER Motor - #JA2C271 Ja2C134, CCW, Shaft Size1/4 " A $181.42
6 S11805000 Fan Blade- Metal, 5 Blade, Ccw (7.75 wide w/ 1/4 diam) $50.76
12 SNT10034000 Receptacle (Black)
This product has been discontinued

12 S99270982 Receptacle $18.00
