NuTone 352 Central Vacuum Can Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 352 Central Vacuum Can Parts

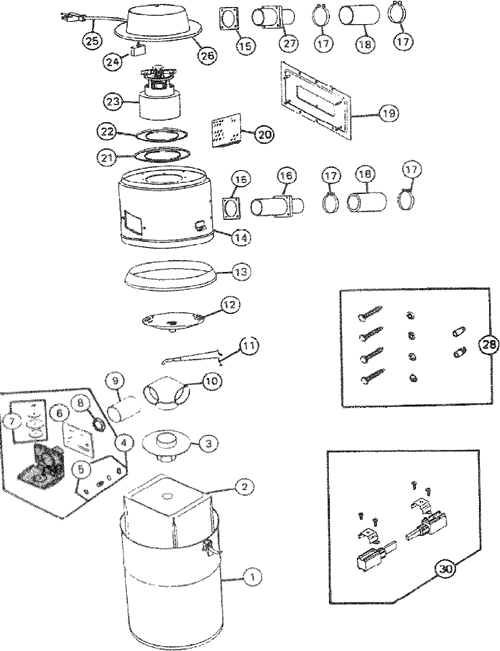

NuTone 352 Central Vacuum Can Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $1.48
1391 REPLACEMENT VAC BAGS (3) $11.70
135910000 LOW PAIL/CLAMP BNC# 10941108
7S1618A000 VALVE SEAL KIT $16.36
15S63089000 GASKET
1765959000 CLAMP VEN# G-20PH BNC 30420011 $1.42
1865960000 CONNECTOR
2163243000 SEAL GASKET $13.43
2356858000 MOTOR $242.57
24S0521B000 RELAY ASSY BNC 10941103 $47.54
2763249000 MOLDED FLANGE & TUBE ASSY $2.72
2834800000 HARDWARE PKG $2.02
30S1803A000 BRUSH SET (2) $24.57
