NuTone 3400 Non-Duct Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 3400 Non-Duct Range Hood Parts

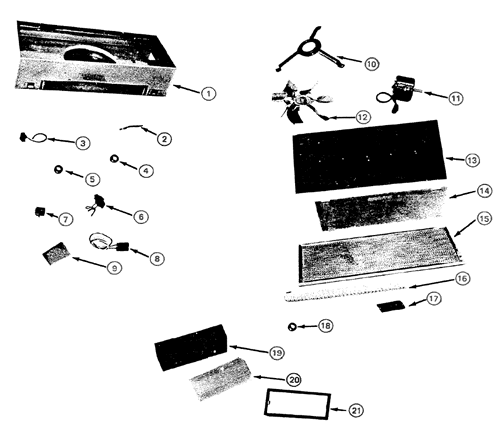

NuTone 3400 Non-Duct Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
3S99270982 Receptacle $18.00
0HCK44 Cord Kit with 6' cord and plug $42.30
3SNT10034000 Receptacle (Part# Changed to S99270982)
This product has been discontinued

5S26546000 SWITCH - OLD VERSION 84 - NEW VERSION SEE 26546 $64.80
1126721SER MOTOR MODIFIED - (CCW 2800 RPM) $119.43
1218760000 FAN BLADE (METAL - 6 BLADE) $16.44
13S18722000 CARBON FILTER (23 3/4 x 10 3/8) $109.80
15S19879000 FILTER - ALUMINUM (23 13/16 x 10 5/8) $36.90
